SNC trailed seeder

Pneumatic seeding

SNC trailed seeder

Seed drills that due to their dimensions and weight have to be pulled by the tractor. They are used in LARGE FARMS and have large capacity hoppers . They are pneumatic seed drills that can be seed or seed and fertilizer.

Contact us at

Features

  • Hopper of 6,000 and 7,500 liters, with access platform and selector screen.
  • Hydraulic support operator.
  • Adjustable ring hook.
  • Rear 3-point rear hitch arch for seeding unit.
  • Panel with auxiliary hydraulic and 12 V electrical outlets.
  • Center wheels with 550/60 R22.5" flotation tires.
  • Cardan homokinetic transmission TFT 540 r.p.m. in SNC COMB.
  • Pneumatic volumetric distribution system.
  • Drive wheel dosing drive.
  • Controller in cabin with 5 functions (Ha count, filling, rev counter, forward speed, alarm rpm doser).
  • Approved lighting and signaling devices.
  • Rear LED work lights.
  • Seeding rate weighing kit.

CNS SEM models

  • One hopper.
  • Turbine with hydraulic motor (tractor oil).
  • 1 dispenser for fine and normal seeds.
  • 1 controller 5 functions.

SNC COMB models

  • Double seed/fertilizer hopper (60% - 40%) with the possibility of 70% - 30%.
  • 2 turbines with hydraulic motor, with independent circuit.
  • 2 dosing units: one for fine and normal seeds, one for fertilizers (stainless steel).
  • 2 seed-fertilizer distribution heads.
  • 2 controllers 5 functions.

Standard equipment

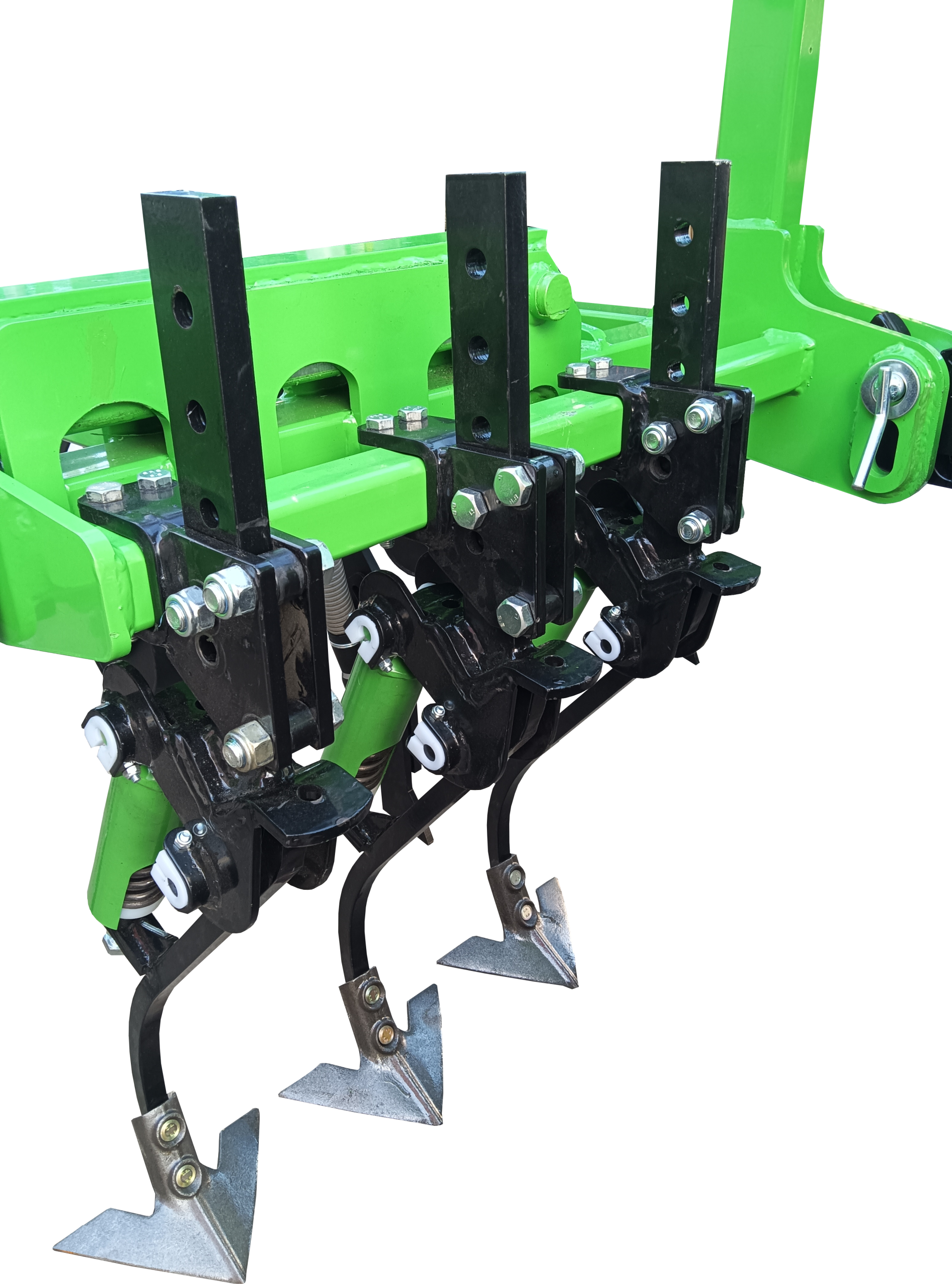

SNC fingerprint eraser
SNC fingerprint eraser

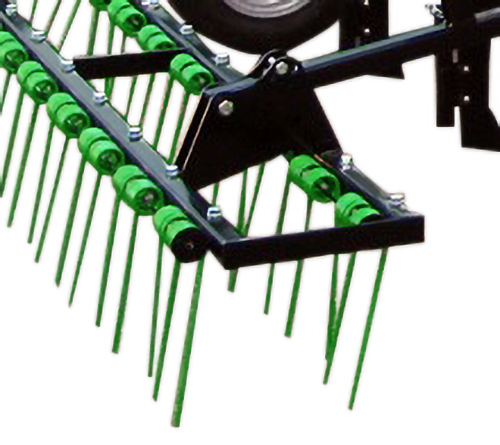

Double spring rake
Double spring rake

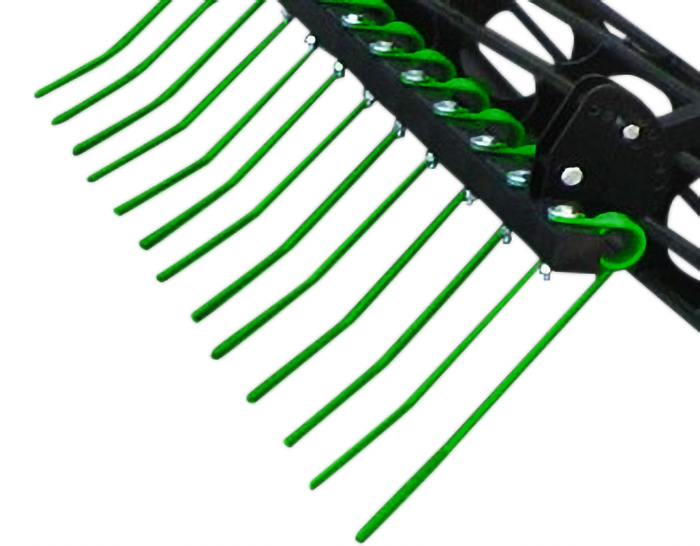

Single curved spring rake
Single curved spring rake
SDR roller
SDR roller

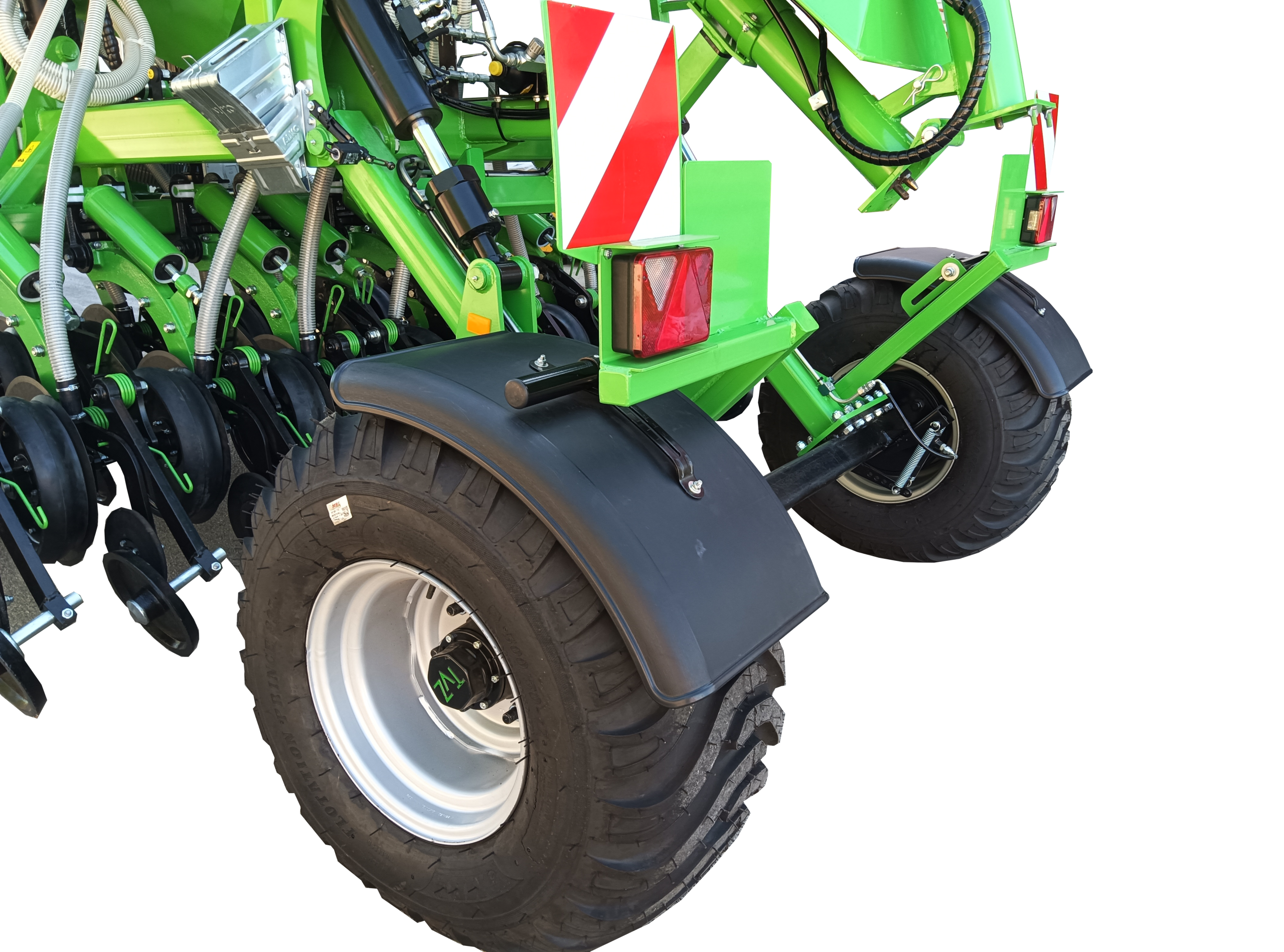

Wheel 400
Wheel 400

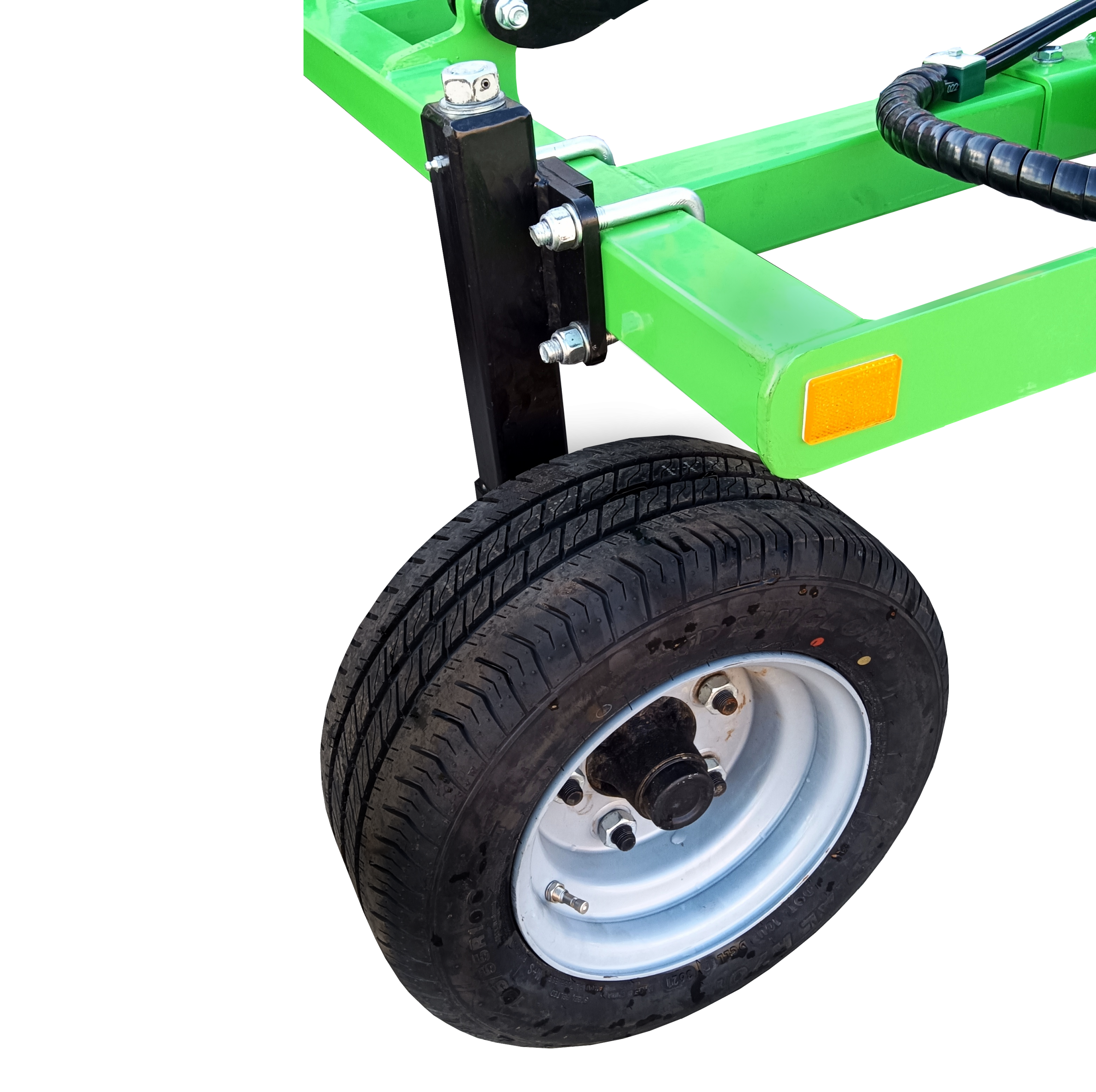

Depth control wheel NC
Depth control wheel NC

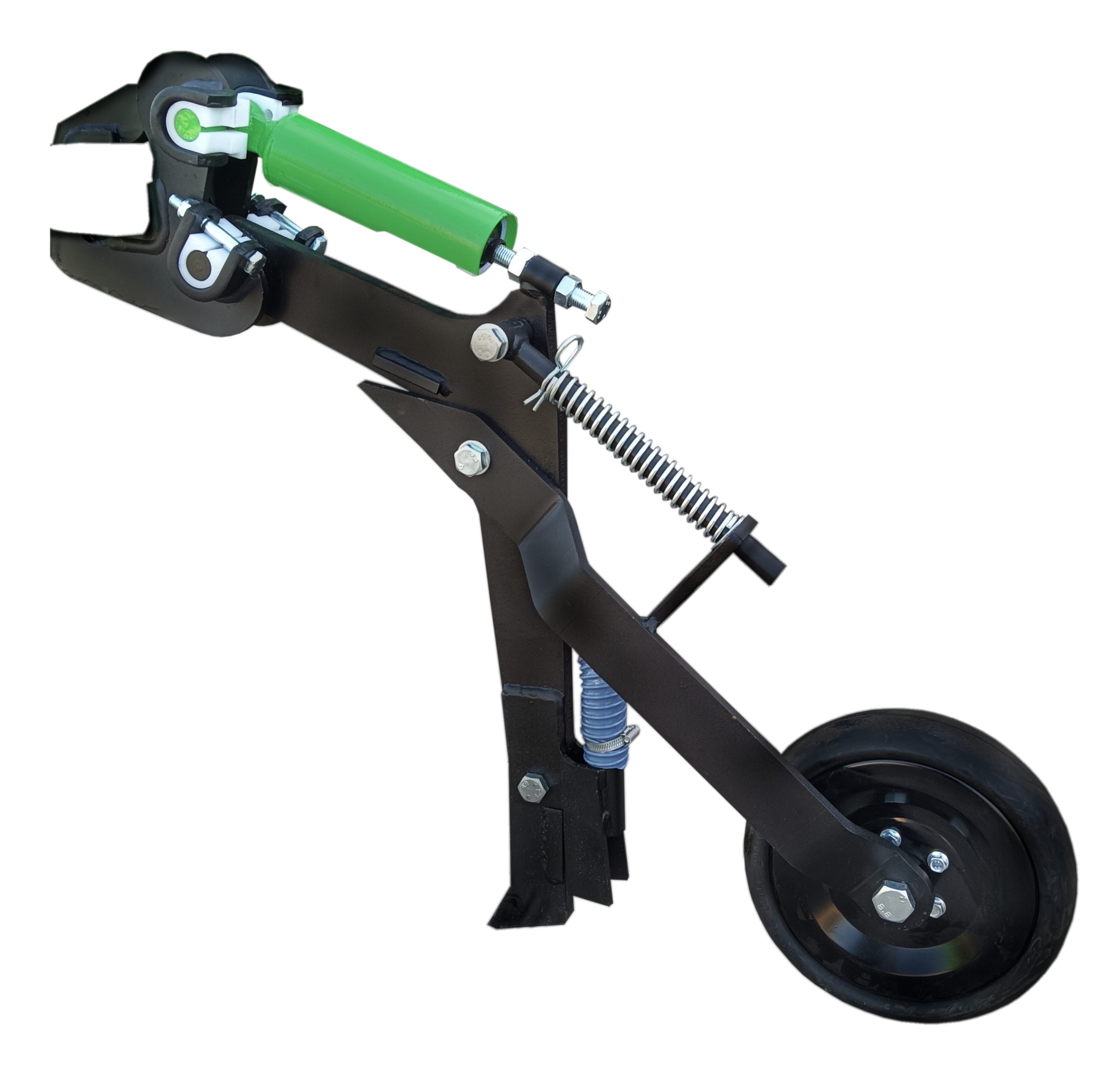

SDR wheel arm
SDR wheel arm

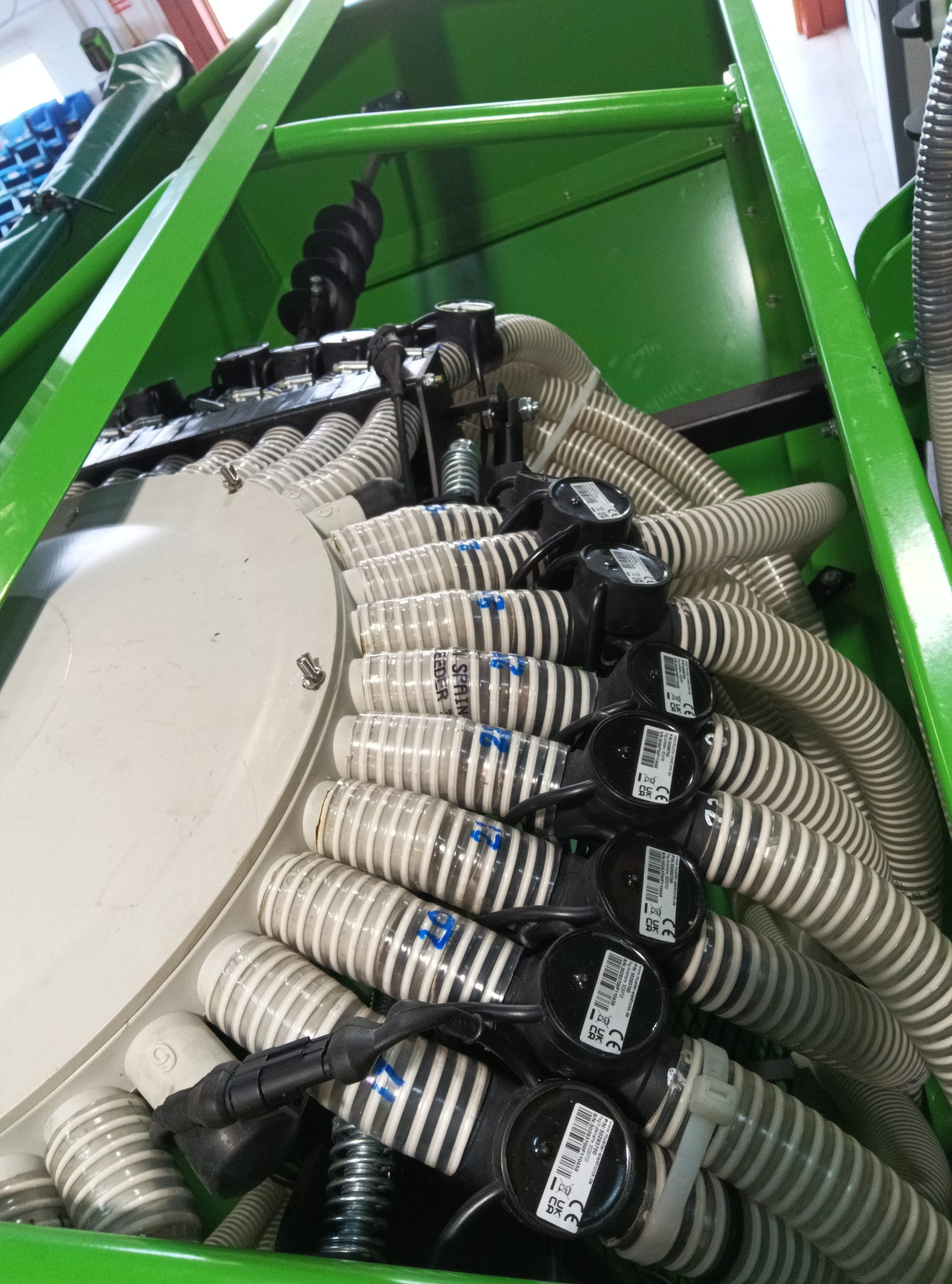

Seed tube lock sensor
Seed tube lock sensor

SNC seeder (without seeding unit)

Code Model Length (m) Width (m) Height (m) Hopper (L) Unladen weight (kg) P.V.P.
Seed Fertilizer
1021050002SNC 6000 SEM5,752,552,96.000-2.52029.090 €
1021050001SNC 6000 COMB5,752,552,93.6002.4002.69040.400 €
1021050004SNC 7500 SEM5,752,553,27.500-2.70029.730 €
1021050003SNC 7500 COMB5,752,553,24.4003.1002.87041.150 €

Coulter and disc seeding units for SNC seed drills

TNR coulter seeding train - Conventional seeding

Code Model Arms Width (m) Weight (kg) P.V.P.
Number Separation (cm) Job Transportation
1021050042TNR 500-4-404012,55,003,001.17014.100 €
1021050043TNR 600-4-4040156,003,001.22014.470 €
1021050044TNR 600-4-484812,56,003,001.25015.670 €
1021050045TNR 700-4-484814,57,003,001.41016.140 €

Characteristics of the
seeding train TNR:

  • Row spacing: 30 cm.
  • Single point grating
  • Clearance under chassis 52 cm.
  • Dock safety
  • Two 195/55- R10C pneumatic tires with depth control on seeding unit wings.

TND disc coulter drill - Conventional seeding

Code Model Arms Width (m) Weight (kg) P.V.P.
Number Separation (cm) Job Transportation
1021050039TND 500-404012,553128015.790 €
1021050040TND 600-484812,563147016.360 €
1021050041TND 700-484814,573158018.810 €

Characteristics of the
TND seeding train:

  • Row spacing: 31 cm.
  • Clearance under chassis 53 cm.
  • Independent arm adjustment.
  • Two 195/55- R10C pneumatic tires with depth control on seeding unit wings.

Note: Not suitable for mounting on SNC-COMB models.

Direct seeding trains for SNC seed drill

TDL coulter drill - direct seeding

Code Model Arms Width (m) Weight (kg) P.V.P.
Number Separation (cm) Job Transportation
1021060045TDL 500-4-343414,75,003,001.33016.230 €
1021060046TDL 600-4-4040156,003,001.38018.180 €
1021060047TDL 700-4-484814,57,003,001.55020.450 €

Characteristics of the
seeding train TDL:

  • Row spacing: 40 cm.
  • 12 mm grating.
  • Clearance under chassis 56 cm.
  • Dock safety.
  • Grids reinforced with tungsten carbide inserts.
  • Removable coulter arm coulter (no need to replace the arm when the coulter is worn).
  • Two 195/55- R10C pneumatic tires with depth control on seeding unit wings.
  • Adjustable arm for SNC seeder treader.

TDR coulter seeding unit - Direct seeding

Code Model Arms Width (m) Weight (kg) P.V.P.
Number Separation (cm) Job Transportation
1021060048TDR 500-4-3131165,003,001.64017.830 €
1021060050TDR 600-4-4040156,003,001.69020.200 €
1021060051TDR 700-4-484814,57,003,001.90023.100 €

Characteristics of the
seeding train TDL:

  • Row spacing: 47 cm.
  • 20 mm grating.
  • Clearance under chassis: 61 cm.
  • Dock safety.
  • Grids reinforced with tungsten carbide inserts.
  • Removable coulter arm coulter (no need to replace the arm when the coulter is worn).
  • Two 195/55- R10C pneumatic tires with depth control on seeding unit wings.
  • Adjustable arm for SNC seeder treader.

TDC coulter coulter drill - Combined direct drilling (SNC COMB models only)

Code Model Arms Width (m) Weight (kg) P.V.P.
Number Separation (cm) Job Transportation
1021060053TDC 500-3-2424215,003,00180020.040 €
1021060052TDC 600-3-2929216,003,00199023.250 €
1021060054TDC 700-3-343420,57,003,00224025.590 €

Characteristics of the
seeding train TDL:

  • Row spacing: 80 cm.
  • Clearance under chassis: 61 cm.
  • 12 mm grids, removable with tungsten carbide inserts.
  • Spring safety with parallelogram regulation.
  • Seed and fertilizer outlet in independent furrows with adjustable spacing.
  • Two 195/55-R10C pneumatic wheels with depth control on seeding unit wings.
  • Adjustable arm for SNC seeder treader.

Optional

Rollers for TDR seeding trains

CAGE ROLLER Ø 25 cm with 8 bars of 20 mm
Code Model WORKING WIDTH (m) WEIGHT (Kg) P.V.P.
2021060022 TDR-500 5 300 1.810 €
2021060023 TDR-600 6 350 2.020 €
2021060024 TDR-700 7 390 2.180 €

Rakes

For model: Double spring rake Ø 7 mm. 2 rows Single curved spring rake Ø 9 mm 1 row
CodeWidth (m)KgP.V.P. CodeWidth (m)KgP.V.P.
SNC 500 20210500505210880 € 20210600175210880 €
SNC 600 20210500516270950 € 20210600186270950 €
SNC 700 202105005273201.080 € 202106001973201.080 €
