Nut harvesters
Dry nuts harvesters with rear umbrella
Series 90
The almond harvester with rear umbrella and drawer is installed together with its hydraulic power pack at the rear of the tractor. It requires a tractor with a power of at least 80 HP. It allows a great saving of time and labor through a fast and efficient harvesting. Umbrella for harvesting almonds, pistachios or walnuts.
Features
- Simultaneous opening movement of umbrella and vibrating heads.
- Independent regulation of the fold/ unfold speed of the umbrella.

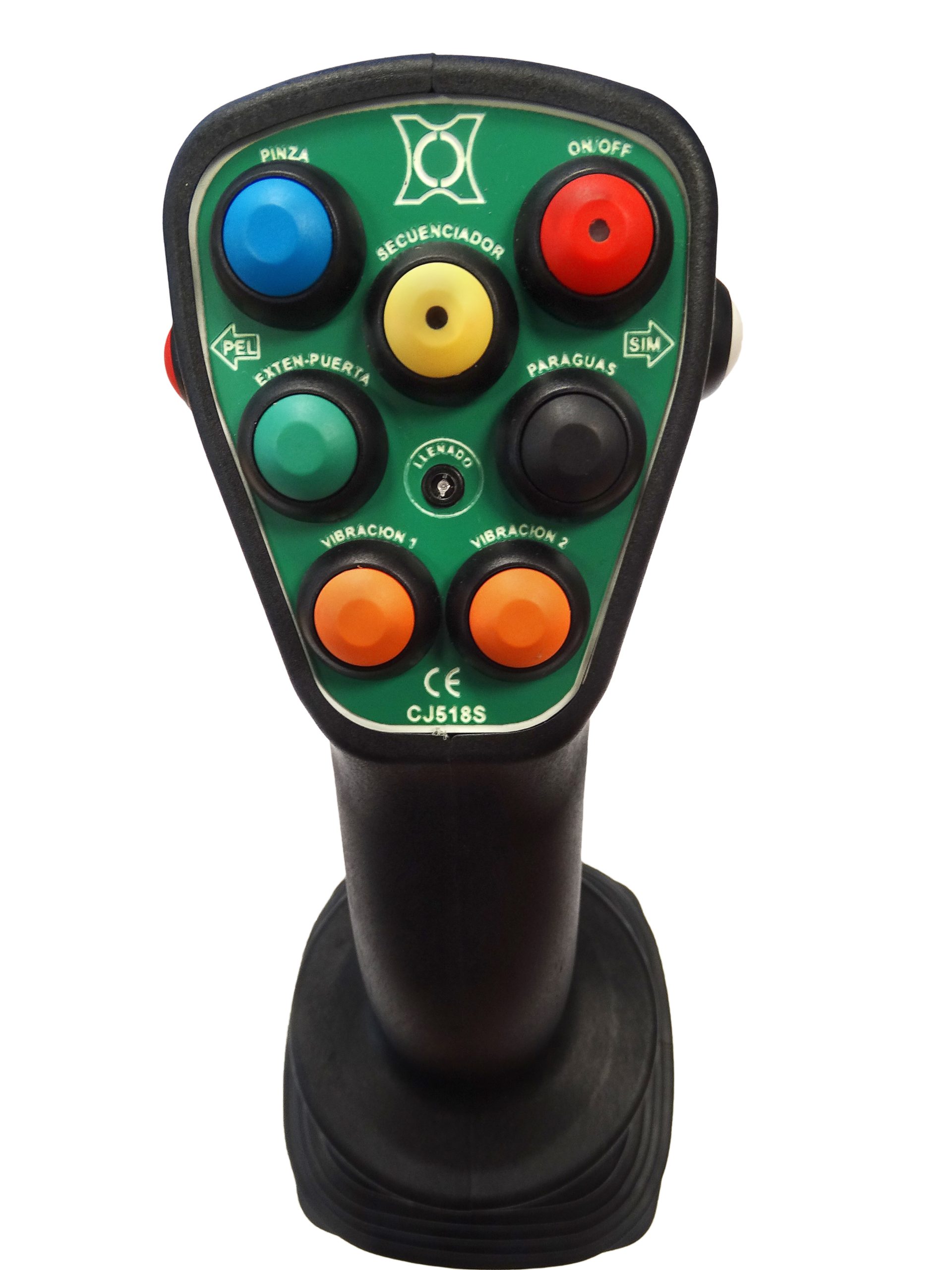

- In-cab electronic control box
- Bimass vibrating head with square mallets and 1-2 and 1-2-3 mass supplements as standard for RT65.
- Bimass vibrating head with square mallets and 1-2-3 and 1-2-3-4 mass supplements as standard for RT70.
- Hydraulic central integrated into the harvester.
- Peelers with independent regulation.
- Hydraulic pipes for unloading endless screw and hydraulic 3rd points directly to the tractor.
- Hitching to the 3 points + connec. Through PTO SHAFT.
- Protec. grid for the tractor hydr. adjustable.
- PTO SHAFT 540 r.p.m.
- Optimal working revolutions: 380 r.p.m.

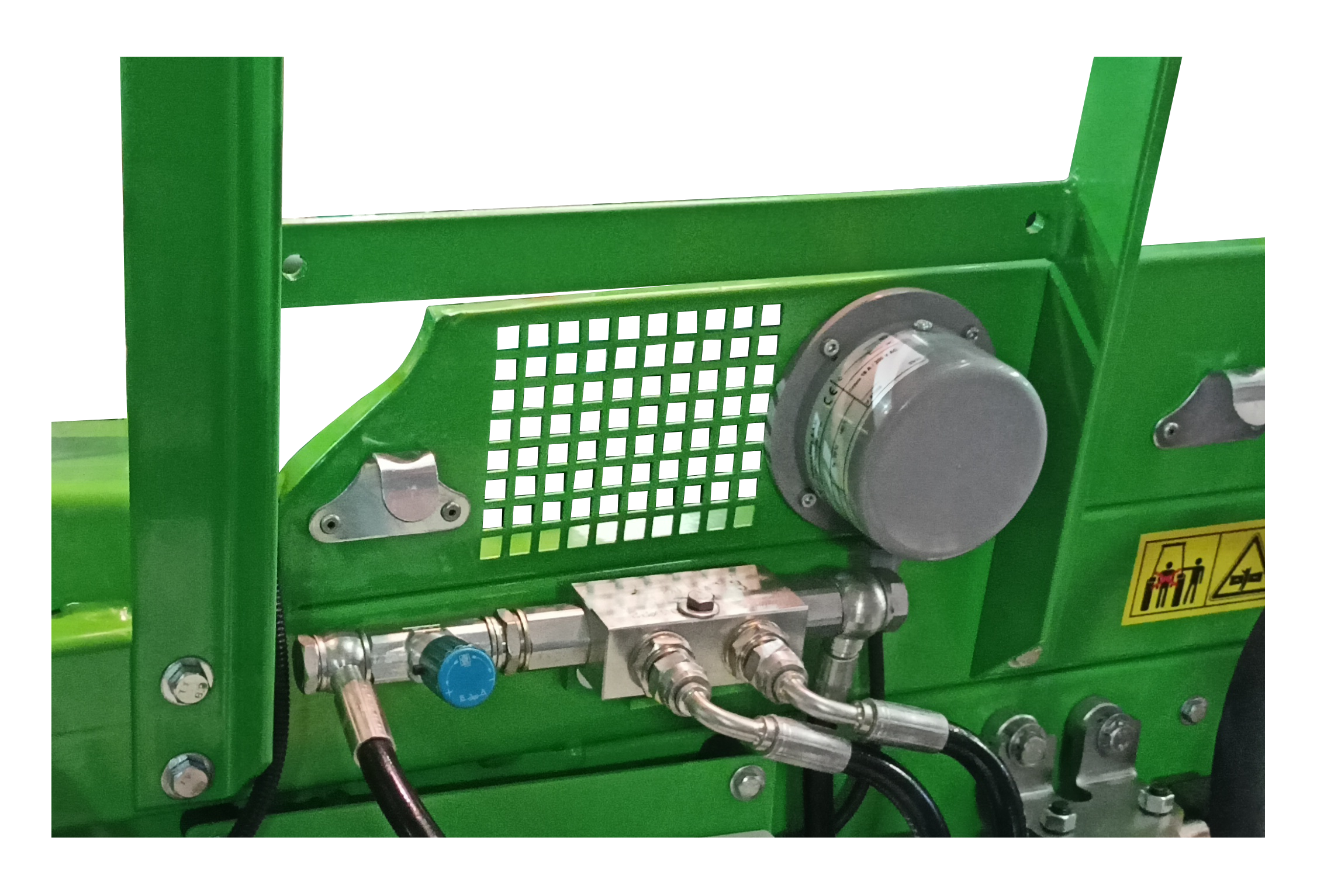

- Filling sensor as standard on RT70.
| Code | Model | Hydr. 3rd point | Head elevation | Drawer (m) | Ø Umbrella (m) | Power (CV) | Minimum planting distance (m)*. | P.V.P. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Adjustable grid | Peelers | A | B | |||||||
| 1041070002 | RT 65 P | ● | ● | ● | 1 | 6,5 | 80 | 5 | 6 | 30.710 € |
| 1041070003 | RT 70 P | ● | ● | ● | 1 | 6,5 | 90 | 5 | 6 | 33.810 € |
