Steel vertical hydraulic booms
Hydraulic function selector: for ECO, BS, BSN & ES booms (optional).
6, 8 or 10-way solenoid valves + selector with rotary position button in cab. Convenient and simple, it connects to a double-acting hydraulic socket and to a 12 V tractor socket:
ECO
12 and 14 m
Features
- Bars in 5 mechanical sections (center + 2 arms on each side).
- Independent left/right opening.
- Rocker arm by connecting rod system, with manual locking.
- Ball bearing in the joint between the center and the first arm.
- Safety in the last section on each side.
- Stainless steel piping.
- Standard: single jet (tri-jet as option)

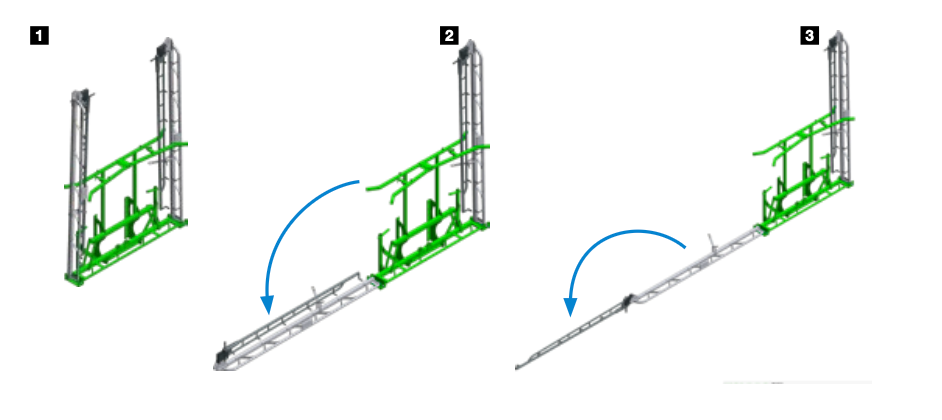

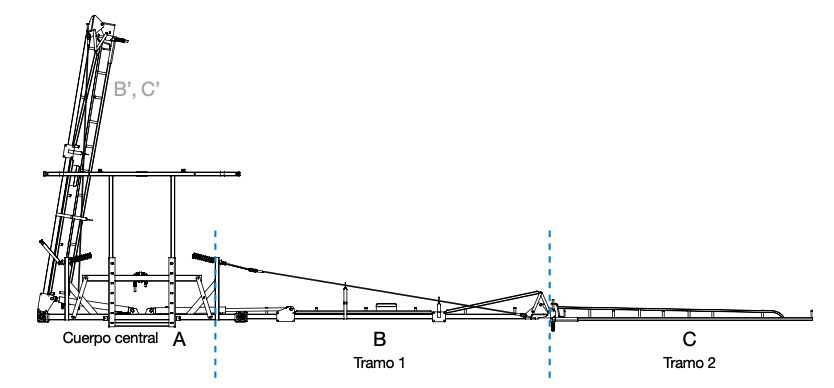

Number of nozzles and bar opening/folding
| Model | A | B | C | Total nozzles: A+B+B'+C+C' | Weight (kg) |
|---|---|---|---|---|---|
| 12 m | 4 | 5 | 5 | 24 | 205 |
| 14 m | 4 | 6 | 6 | 28 | 240 |
BS
12 and 14m
Features
- Bars in 5 mechanical sections (center + 2 arms on each side).
- Independent left/right opening.
- Rocker arm by pendulum system, with manual locking.
- Ball bearing in the joint between the center and the first arm.
- Last section safety by ball-and-socket joint system (3D movement) and with aluminum toe cap.
- Nozzle holders protected on the whole bar, stainless steel conduction pipe.
- Standard: single jet (tri-jet as option)
- Optional hydraulic locking.
- Optional hydraulic slope corrector.

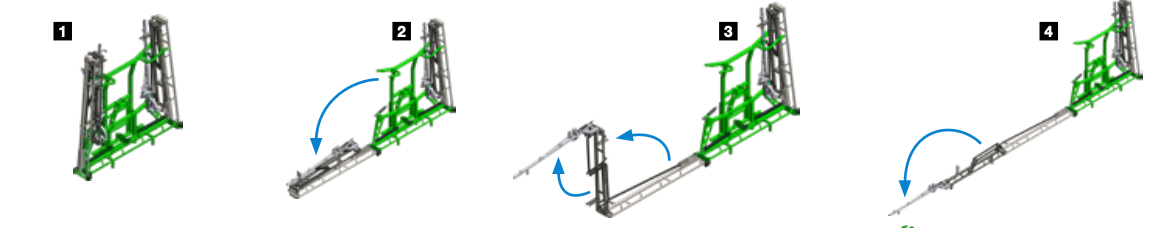

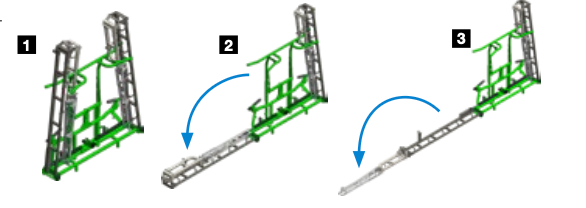

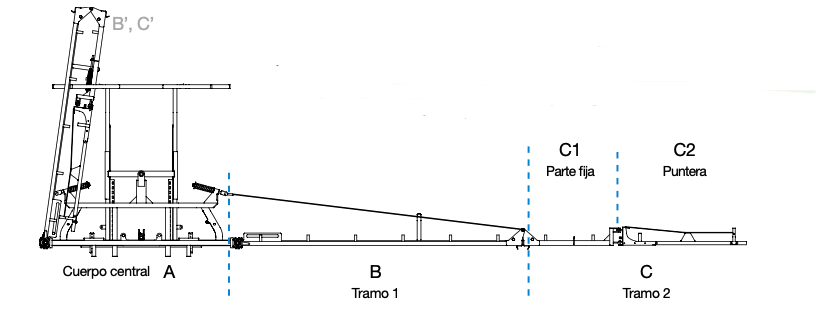

Number of nozzles and bar opening/folding
| Model | A | B | C | Total nozzles: A+B+B'+C+C' | Weight (kg) | |
|---|---|---|---|---|---|---|
| C1 | C2 | |||||
| 12 m | 4 | 5 | 2 | 3 | 24 | 300 |
| 14 m | 4 | 6 | 3 | 3 | 28 | 320 |
BS
15 and 16m
Features
- Bars in 7 mechanical sections (center + 3 arms on each side).
- Independent left/right opening.
- Rocker arm by connecting rod system, with manual locking.
- Ball bearing in the joint between the center and the first arm.
- Safety in the last section on each side by means of a ball-and-socket joint system (3D movement).
- Stainless steel piping.
- Standard: single jet (tri-jet as option).
- Optional hydraulic locking.

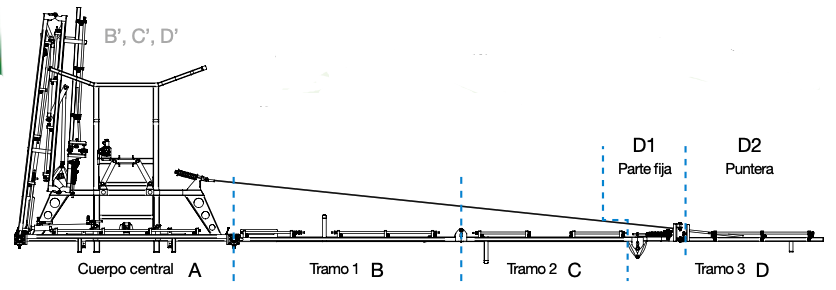

Number of nozzles and bar opening/folding
| Model | A | B | C | D | Total nozzles: A+B+B'+C+C'+D+D' | Weight (kg) | |
|---|---|---|---|---|---|---|---|
| D1 | D2 | ||||||
| 15 m | 4 | 5 | 4 | 1 | 3 | 30 | 360 |
| 16 m | 4 | 5 | 4 | 1 | 4 | 32 | 370 |
BSN
15, 16 and 18 m
Features
- Bars in 7 mechanical sections (center + 3 arms in each side).
- Reinforced central body, pendulum system with mechanical locking.
- Articulation in each first section (left and right) with PAF anti-wear bushing.
- Safety in the last stretch by ball joint system (3D movement) and aluminum toe cap.
- Independent left/right opening with full modular design with a single cylinder.
- Nozzle holders protected on the whole bar, stainless steel conduction pipe.
- Standard: single jet (tri-jet as option)
- Standard: hydraulic locking.
- Optional: Hydraulic slope corrector.

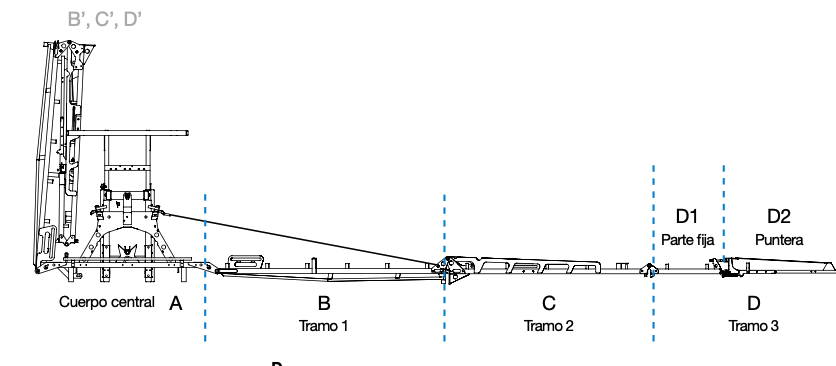

Number of nozzles and bar opening/folding
| Model | A | B | C | D | Total nozzles: A+B+B'+C+C'+D+D' | Weight (kg) | |
|---|---|---|---|---|---|---|---|
| D1 | D2 | ||||||
| 15 m | 4 | 5 | 4 | 2 | 2 | 30 | 555 |
| 16 m | 4 | 6 | 4 | 2 | 2 | 32 | 595 |
| 18 m | 4 | 6 | 5 | 2 | 3 | 36 | 620 |
EN
15, 16 and 18 m
Features
- Bars in 7 mechanical sections (center + 3 arms in each side).
- Reinforced central body (square 100 x 100 x 5 mm).
- Pendulum system with manual locking.
- Articulation in each first section (left and right) with PAF anti-wear bushing.
- Safety in last by ball joint system (3D movement) and aluminum toe cap.
- Independent left/right opening with 2 sequential cylinders on each side to reduce the length of the joints up to the end of the bar.
- Nozzle holders protected on the whole bar, stainless steel conduction pipe.
- Standard: single jet (tri-jet as option)
- Standard: hydraulic locking.
- Optional hydraulic slope corrector.

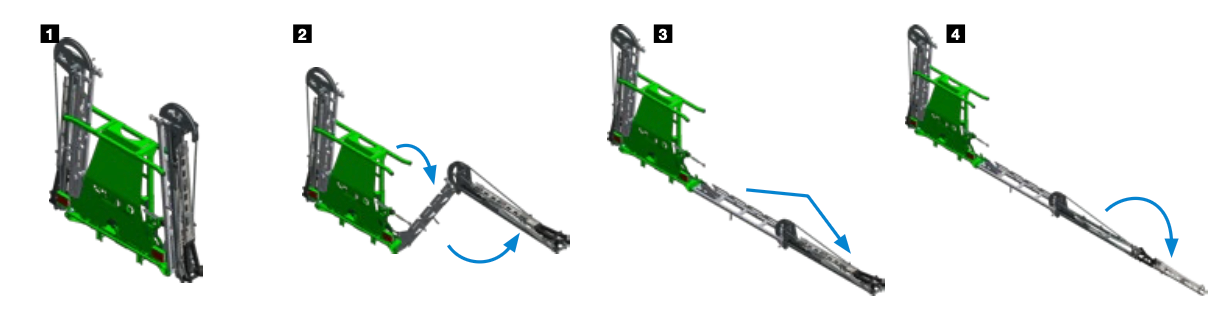

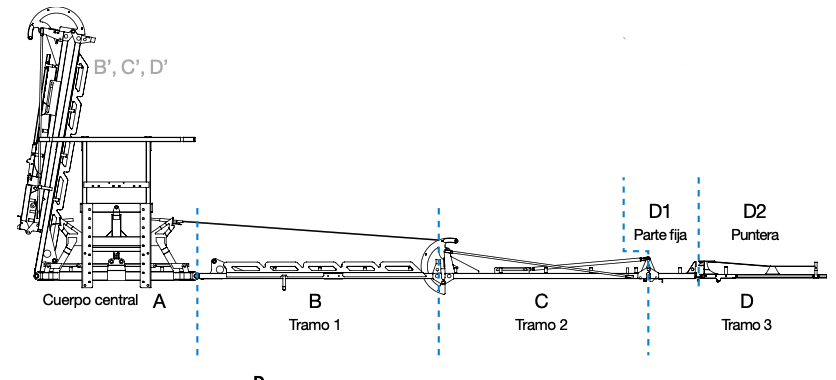

Number of nozzles and bar opening/folding
| Model | A | B | C | D | Total nozzles: A+B+B'+C+C'+D+D' | Weight (kg) | |
|---|---|---|---|---|---|---|---|
| D1 | D2 | ||||||
| 15 m | 4 | 4 | 5 | 1 | 3 | 30 | 440 |
| 16 m | 4 | 5 | 5 | 1 | 3 | 32 | 480 |
| 18 m | 4 | 5 | 6 | 1 | 4 | 36 | 520 |
BGVN
15, 16 and 18 m
Features
- Bars in 7 mechanical sections (center + 3 arms on each side).
- Central body with self-leveling system with connecting rods.
- Safety in the last section by means of a ball-and-socket joint system (3D movement).
- 6 independent hydraulic functions with electro-valves and in-cab control.
- Standard rear running light kit + trim.
- Great bar stability at work.
- Optimum versatility: independent left/right opening and positive variable geometry as standard.
- Standard: single jet (tri-jet as option)
- Standard: hydraulic locking.
- Optional hydraulic slope corrector.
All hydraulic functions INCLUDED AS STANDARD.

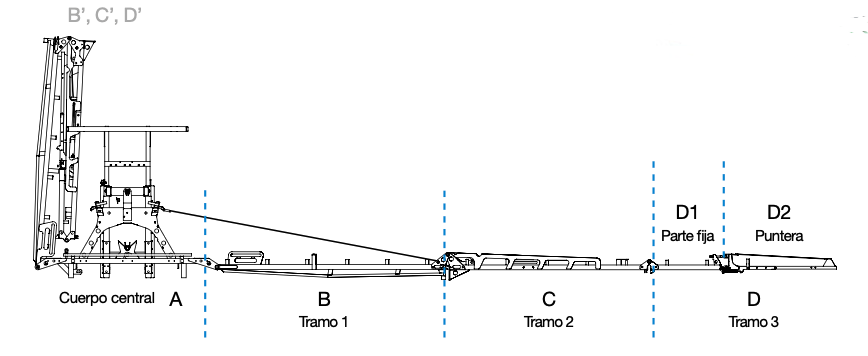

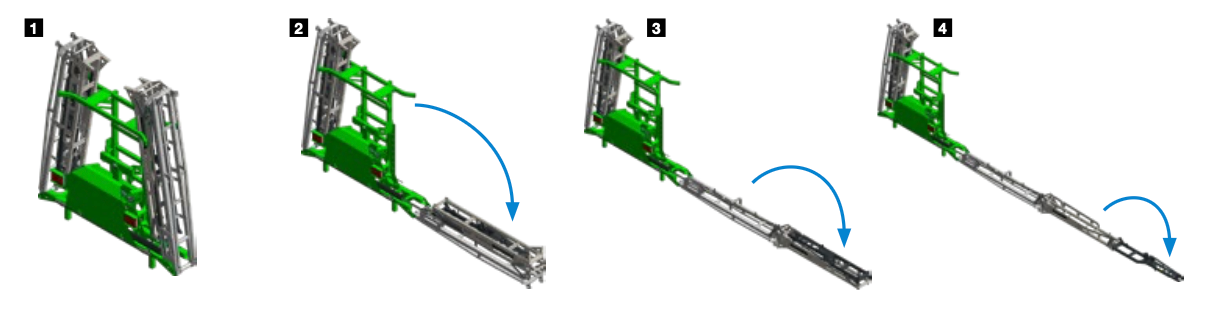

Number of nozzles and bar opening/folding
| Model | A | B | C | D | Total nozzles: A+B+B'+C+C'+D+D' | Weight (kg) | |
|---|---|---|---|---|---|---|---|
| D1 | D2 | ||||||
| 15 m | 4 | 5 | 4 | 2 | 2 | 30 | - |
| 16 m | 4 | 6 | 4 | 2 | 2 | 32 | - |
| 18 m | 4 | 6 | 5 | 2 | 3 | 36 | 590 |
SH
18, 20 and 21 m
Features
- Bars in 7 mechanical sections (center + 3 arms on each side).
- Central body with hydraulic pendulum locking system as standard.
- Anti-whiplash system + 2 shock absorbers in the central body.
- Safety in the last section by ball joint system (3D movement) with aluminum toe cap.
- 9 independent hydraulic functions with electro-valves and in-cab control.
- Standard trim.
- Great bar stability at work.
- Optimal versatility: independent left/right opening, hydraulic slope corrector and positive variable geometry as standard.
- Standard tri-jet nozzle holders protected on the whole bar, stainless steel piping.
- Optional hydraulic slope corrector.
All hydraulic functions INCLUDED AS STANDARD.

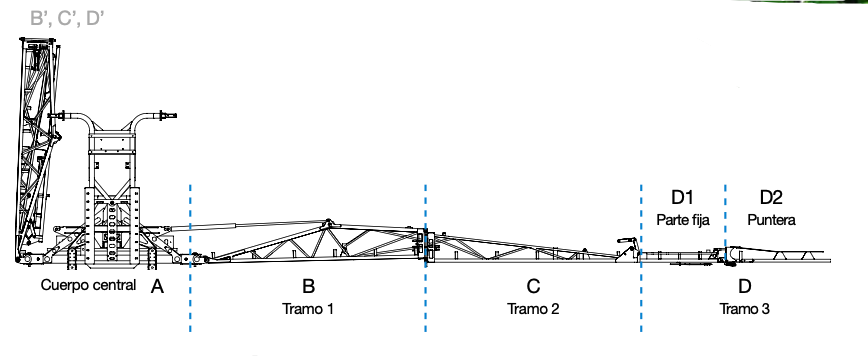

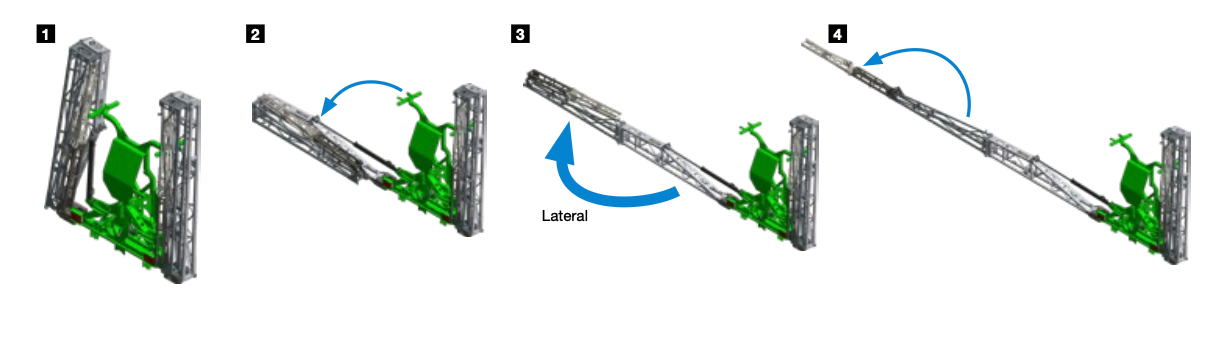

Number of nozzles and bar opening/folding
| Model | A | B | C | D | Total nozzles: A+B+B'+C+C'+D+D' | Weight (kg) | |
|---|---|---|---|---|---|---|---|
| D1 | D2 | ||||||
| 18 m | 4 | 6 | 5 | 2 | 3 | 36 | 605 |
| 20 m | 4 | 7 | 6 | 2 | 3 | 40 | 650 |
| 21 m | 4 | 7 | 6 | 2 | 4 | 42 | 705 |
