Olive harvester with front umbrella
Series 100.
The olive harvester with front umbrella and drawer is a simplified version of the professional harvester. Like the professional olive harvester, it saves a great deal of time and labor through fast and efficient olive harvesting in medium-sized olive trees.
Features
- Control of hydraulic functions of movement through distributor high efficiency calibrated monobloc.
- Simultaneous opening movement of umbrella and vibrating heads.
- Independent regulation of the fold/ unfold speed of the umbrella.
- Front umbrella: from ø 6 to 8 m, lightweight design and reinforced structure.
- Supplement of umbrella until Ø 8 m.
- Monomass vibrating heads with elevation, turn and system oforbital multiple vibration in both directions to be mounted onthe arms of a front-loader. PISTONS hydraulic system.
-
Harvesting box
- Rear hydraulic central hitched on the 3 points of the tractor, quick hydraulic plugs, counter-weight (in option), visual gauge for the level and temperature of the oil, thermostat, cooling system, suction and return filters.
- In-cab electronic control box.
- Quick system to hitch/unhitch quickly the harvesting box (according to the model).
- Supplement 4 and 5 mass R75.
- Supplement 5 mass R100.
- PTO SHAFT 1000 r.p.m.
- Optimal working revolutions: 880 r.p.m.
| Code | Model | Quick unhitch of box | Umbrella | Power (CV) | Minimum planting distance (m)*. | P.V.P. | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ø Tarpaulin (m) | Fixed | Bass | Folder. hidr. | A | B | |||||
| 1041010046 | R75 | - | 6,5 | ● | - | - | 80 | 5 | 6 | 32.610 € |
| 1041010016 | R100 P 7 | ● | 7 | ● | - | - | 100 | 6 | 7 | 32.040 € |
| 1041010017 | R100 P 8 | ● | 8 | ● | - | - | 100 | 7 | 8 | 33.160 € |
| 1041010018 | R100 PB 6 | ● | 6 | - | ● | - | 100 | 5 | 6 | 32.550 € |
| 1041010019 | R100 PB 7 | ● | 7 | - | ● | - | 100 | 6 | 7 | 32.740 € |
| 1041010021 | R100 PB-H6 | ● | 6 | - | ● | ● | 100 | 5 | 6 | 33.320 € |
| 1041010022 | R100 PB-H7 | ● | 7 | - | - | ● | 100 | 6 | 7 | 33.580 € |
| 1041010023 | R100 PB-H8 | ● | 8 | - | - | ● | 100 | 7 | 8 | 33.870 € |

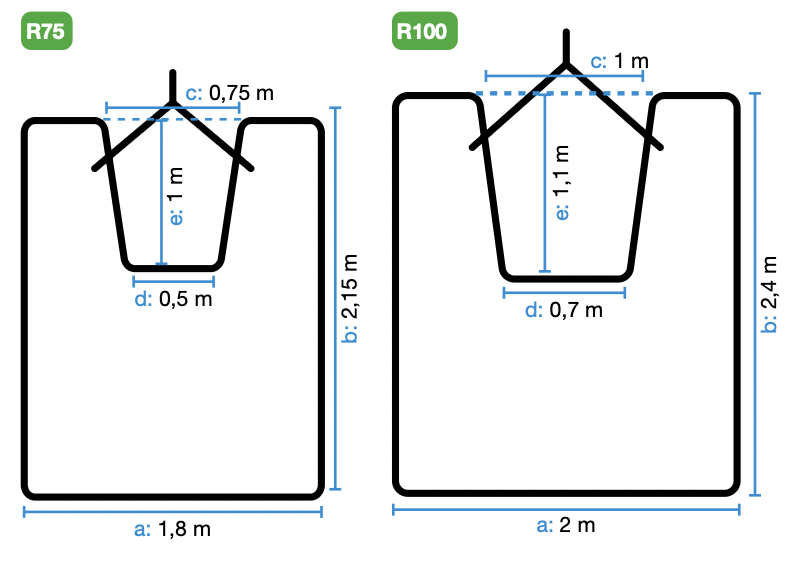

Drawer sizes
- a: Total width
- b: Total lenght
- c: Tree entrance opening
- d: Interior width
- e: Interior lenght
Options
