Direct sow
Pneumatic seeder direct disc seeder SDN
The SDN range of seed drills is available in working widths from 4 to 6 meters, and with 16.5 to 17.5 cm (depending on the model). The graduated metering unit (fine grain and normal grain positions) and the distribution head allow a homogeneous seed distribution. They are heavier machines than conventional pneumatic seed drills. Equipped with a 2,565 liter hopper in which the seeds are stored. To bury the grain, it is mounted with a depth regulation system, and a sowing train of DISCOS with spring safety in 2 rows. They are simple inclined discs with compacting wheel (in option, intermediate wheel).
Features

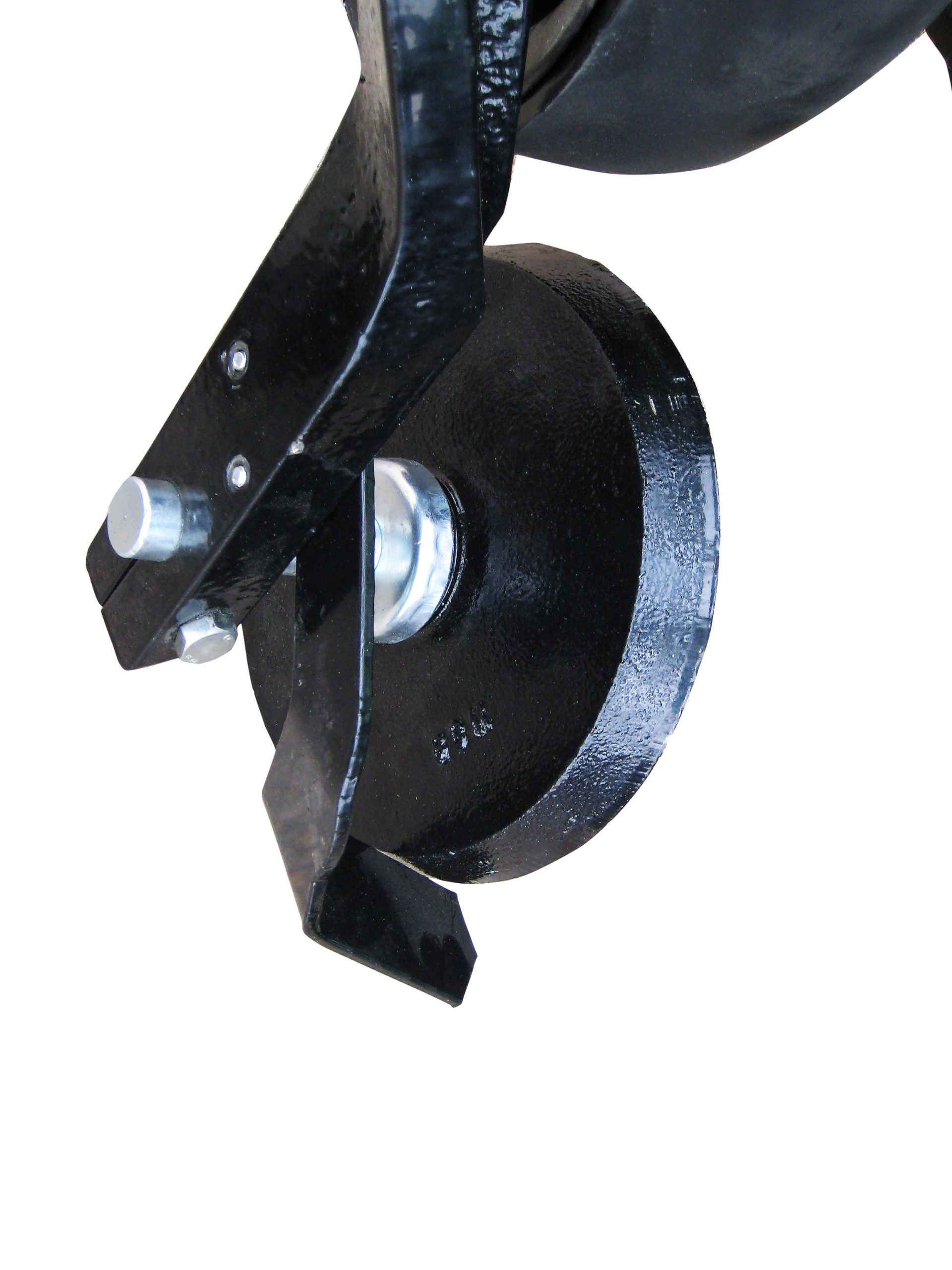

- Seeding system with single adjustable offset disc, compacting wheel and plugging wheel.

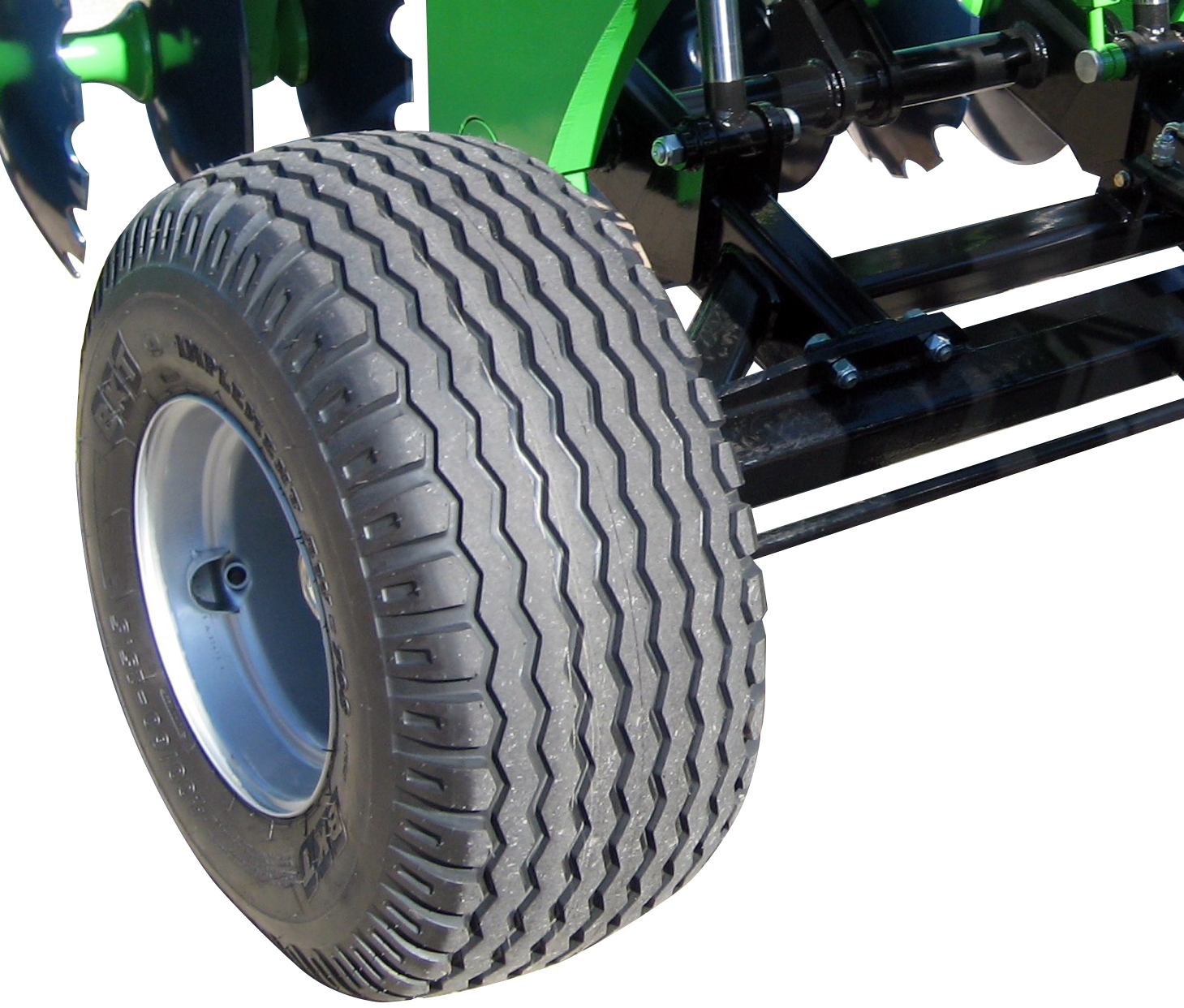

- 400/60-15.5" wheels.

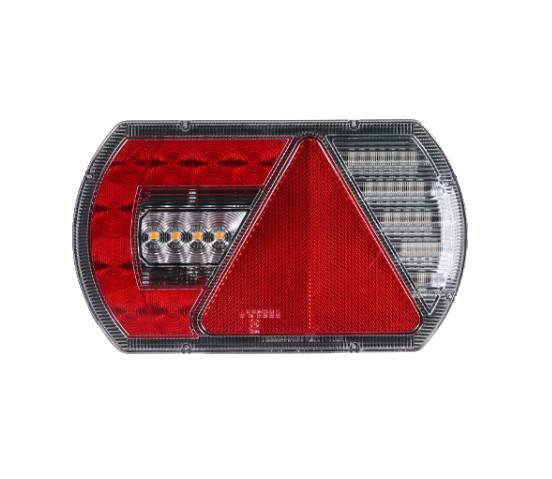

- Approved lighting and signaling device.

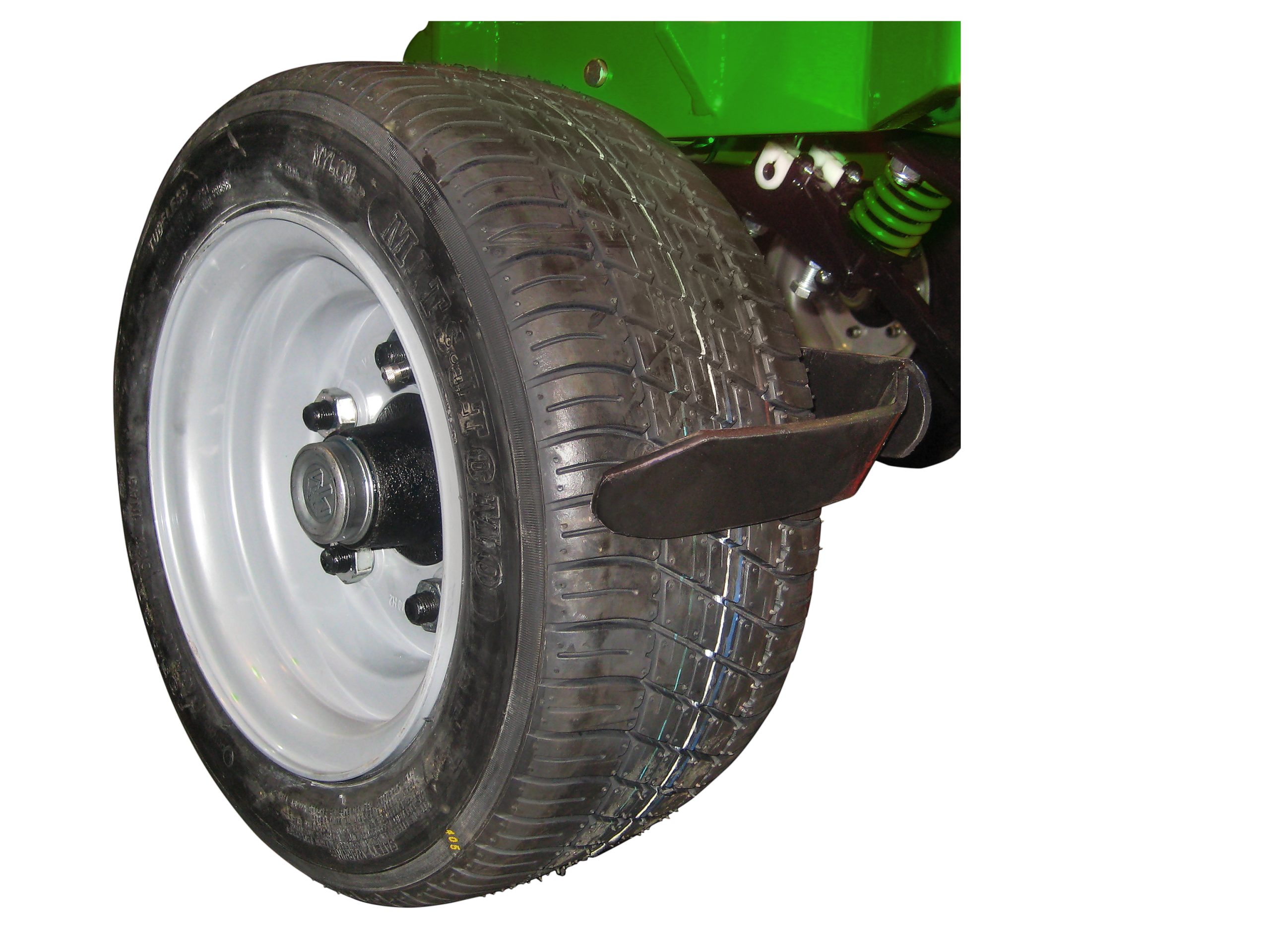

- Depth control to rear wheels.
- V-2 rotating signal light.
- Hopper access platform.
- Hydraulic intakes for augers.
- Hopper selector screen.
- High-capacity volumetric pneumatic volumetric distribution system.
- Large capacity hopper 3000 L.

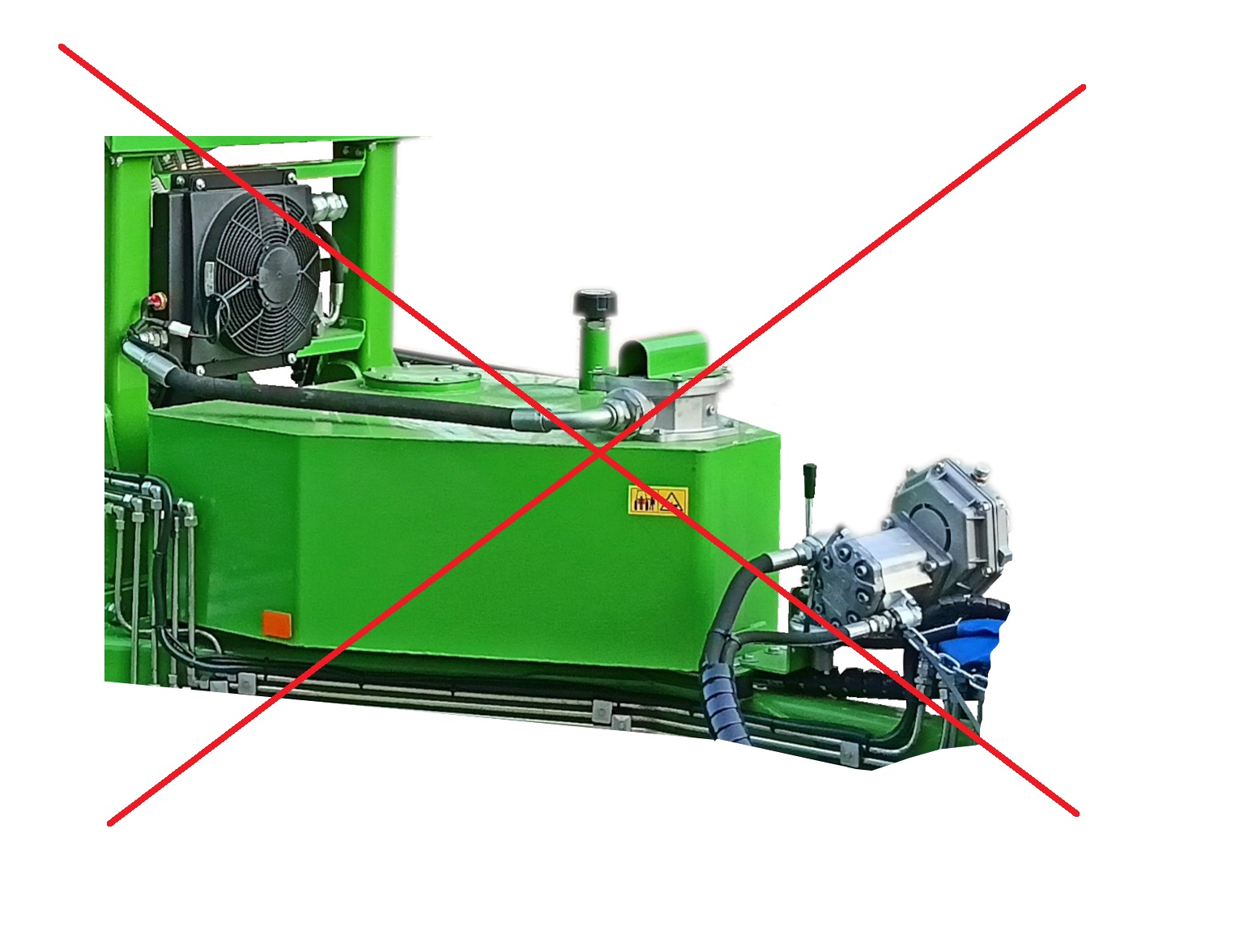

- Pneumatic turbine, powered by independent hydraulic power unit, TFT 540 rpm.

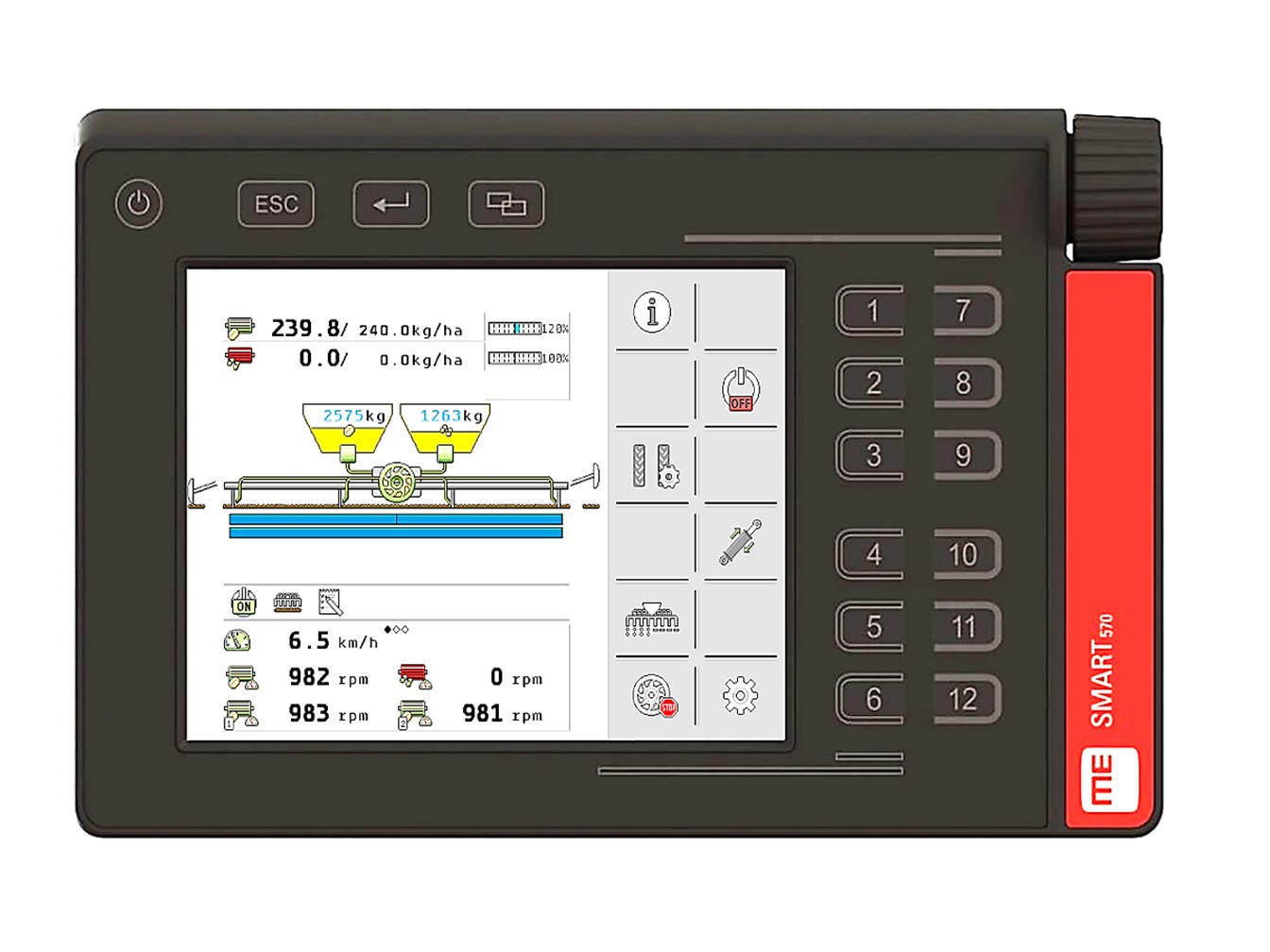

- Electric seed rate control (ISOBUS compatible).
- Seeding rate weighing kit.
- LED work lights.
Standard equipment
Sowing at 17 cm
| Code | Model | Arms | Sep. approx. (cm) | Capacity (L) | Width (m) | Unladen weight (kg) | Power (hp) | P.V.P. | |
|---|---|---|---|---|---|---|---|---|---|
| Job | Total | ||||||||
| 1021060015 | SDN-400-23 | 23 | 17,5 | 3.000 | 4 | 3 | 4.890 | 120-140 | 65.000 € |
| 1021060016 | SDN-450-27 | 27 | 17 | 3.000 | 4,5 | 3 | 5.310 | 140-150 | 70.090 € |
| 1021060017 | SDN-500-29 | 29 | 17 | 3.000 | 5 | 3 | 5.720 | 150-160 | 74.980 € |
| 1021060018 | SDN-550-33 | 33 | 16,5 | 3.000 | 5,5 | 3 | 6.150 | 160-170 | 81.110 € |
| 1021060019 | SDN-600-35 | 35 | 17 | 3.000 | 6 | 3 | 6.580 | 170-190 | 87.110 € |
