Superchisel 2 rows CHR and CVR (40x40 arm)

The Solano Horizon Superchisel 2-row cultivators are robust agricultural machines with two-point coulters very suitable for tillage requiring a working depth of up to 35 cm. Available with horizontal folding or vertical folding, they incorporate double spring reinforcement, minimum maintenance grip and nylon-protected pivots.

Features

Maximum working depth: 35 cm.
Structural chassis in 100x100x8 mm tubing.
All models are equipped with a double spring reinforcement as standard.
Clearance between rows of 80 cm.
Clearance under chassis: 75 cm (for arm 40 x 40)
Hitch category II up to 13 arms (inclusive)
Hitch category III from 15 arms (inclusive)

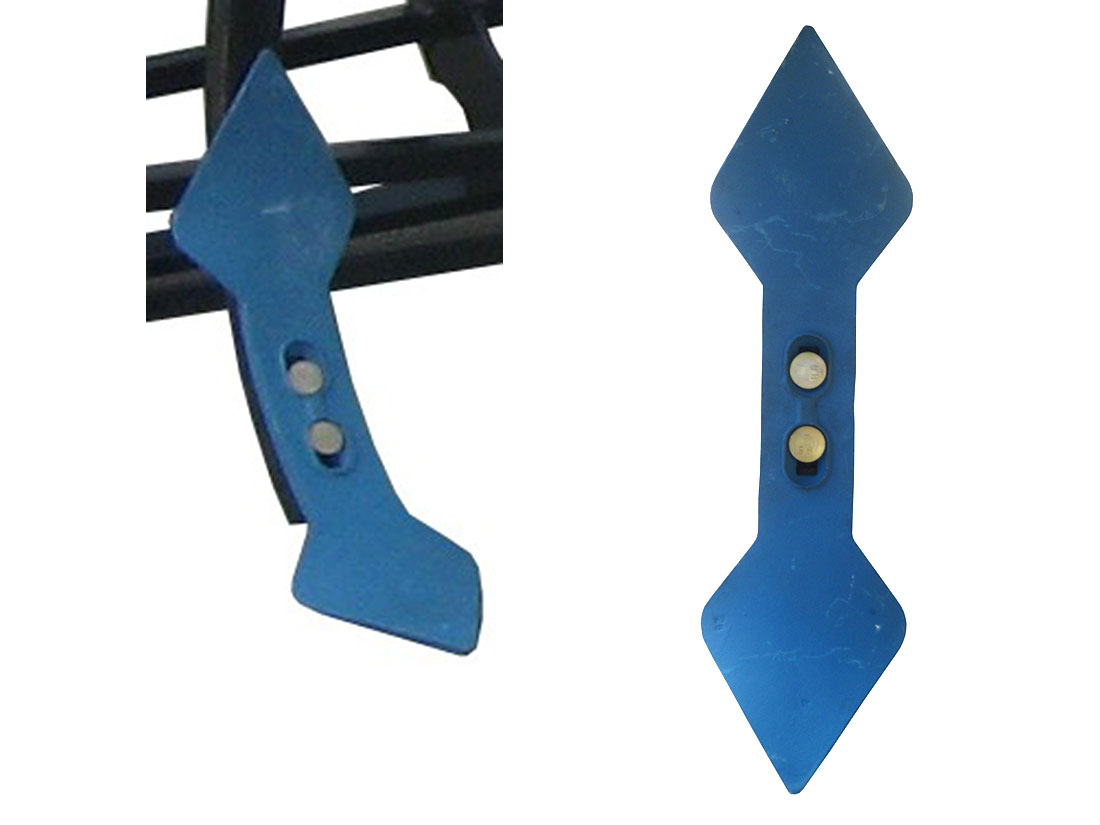

Two-pronged grilles as standard.
In the manual folding chissel the roller is fixed.
Minimum maintenance mooring, turns protected with nylon.

Superchisel 2-row (40×40 arm) horizontal folding CHR

CODE	MODEL	ARMS			WIDTH (m)		WEIGHT (Kg)	POWER (HP)	P.V.P.
CODE	MODEL	Total	Folding	Separation	Job	Folding	WEIGHT (Kg)	POWER (HP)	P.V.P.
101103021	CHR-09-F	9	--	27,5	2,47	2,43	714	80-100	4.880 €
101103022	CHR-11-F	11	--	27,5	3	2,98	895	100-120	5.900 €
101103024	CHR-13-F	13	--	24	3,12	3	1.053	120-140	6.620 €
101103023	CHR-11-P	11	1+9+1	27,5	3	2,48	952	100-120	6.310 €
101103025	CHR-13-PH	13	2+9+2	27,5	3,57	2,48	1.224	120-140	8.720 €
101103026	CHR-15-PH (9)	15	3+9+3	27,5	4,12	2,48	1.357	140-160	10.310 €
101103027	CHR-15-PH (11)	15	2+11+2	27,5	4,12	3	1.440	140-160	10.310 €
101103029	CHR-17-PH (11)	17	3+11+3	27,5	4,67	3	1.550	160-180	11.320 €
101103030	CHR-19-PH (11)	19	4+11+4	27,5	5,22	3	1.710	180-200	12.210 €
101103031	CHR-21-PH (11)	21	5+11+5	27,5	5,77	3	1.900	200-220	13.280 €

CHR-09-F

Code
101103021
Arms (Total)
9
Separation (cm)
27,5
Working width (m)
2,47
Folded width (m)
2,43
Weight (Kg)
714
Power (hp)
80-100
P.V.P.
4.880 €

CHR-11-F

Code
101103022
Arms (Total)
11
Separation (cm)
27,5
Working width (m)
3
Folded width (m)
2,98
Weight (Kg)
895
Power (hp)
100-120
P.V.P.
5.900 €

CHR-13-F

Code
101103024
Arms (Total)
13
Separation (cm)
24
Working width (m)
3,12
Folded width (m)
3
Weight (Kg)
1.053
Power (hp)
120-140
P.V.P.
6.620 €

CHR-11-P

Code
101103023
Arms (Total)
11
Folded
1+9+1
Separation (cm)
27,5
Work (m)
3
Folding (m)
2,48
Weight (Kg)
952
Power (hp)
100-120
P.V.P.
6.310 €

CHR-13-PH

Code
101103025
Arms (Total)
13
Folded
2+9+2
Separation (cm)
27,5
Work (m)
3,57
Folding (m)
2,48
Weight (Kg)
1.224
Power (hp)
120-140
P.V.P.
8.720 €

CHR-15-PH (9)

Code
101103026
Arms (Total)
15
Folded
3+9+3
Separation (cm)
27,5
Work (m)
4,12
Folding (m)
2,48
Weight (Kg)
1.357
Power (hp)
140-160
P.V.P.
10.310 €

CHR-15-PH (11)

Code
101103027
Arms (Total)
15
Folded
2+11+2
Separation (cm)
27,5
Work (m)
4,12
Folding (m)
3
Weight (Kg)
1.440
Power (hp)
140-160
P.V.P.
10.310 €

CHR-17-PH (11)

Code
101103029
Arms (Total)
17
Folded
3+11+3
Separation (cm)
27,5
Work (m)
4,67
Folding (m)
3
Weight (Kg)
1.550
Power (hp)
160-180
P.V.P.
11.320 €

CHR-19-PH (11)

Code
101103030
Arms (Total)
19
Folded
4+11+4
Separation (cm)
27,5
Work (m)
5,22
Folding (m)
3
Weight (Kg)
1.710
Power (hp)
180-200
P.V.P.
12.210 €

CHR-21-PH (11)

Code
101103031
Arms (Total)
21
Folded
5+11+5
Separation (cm)
27,5
Work (m)
5,77
Folding (m)
3
Weight (Kg)
1.900
Power (hp)
200-220
P.V.P.
13.280 €

Superchisel 2 rows (40×40 arm) vertical folding CVR

Code	Model	Arms			Width (m)		Height (m)	Weight (Kg)	Power (hp)	P.V.P.
		Total	Folding	Sep. approx. (cm)	Job	Folding	Folding
101103038	CVR-23-PH (11)	23	6+11+6	27,5	6,3	3	3,25	2.050	220-240	15.420 €
101103039	CVR-25-PH (11)	25	7+11+7	27,5	6,9	3	3,55	2.180	240-260	16.430 €
101103040	CVR-27-PH (11)	27	8+11+8	27,5	7,4	3	3,8	2.340	260-280	17.430 €

CVR-23-PH (11)

Code
101103038
Arms (Total)
23
Folded
6+11+6
Separation (cm)
27,5
Working width (m)
6,3
Folded width (m)
3
Folded height (m)
3,25
Weight (Kg)
2.050
Power (hp)
220-240
P.V.P.
15.420 €

CVR-25-PH (11)

Code
101103039
Arms (Total)
25
Folded
7+11+7
Separation (cm)
27,5
Working width (m)
6,9
Folded width (m)
3
Folded height (m)
3,55
Weight (Kg)
2.180
Power (hp)
240-260
P.V.P.
16.430 €

CVR-27-PH (11)

Code
101103040
Arms (Total)
27
Folded
8+11+8
Separation (cm)
27,5
Working width (m)
7,4
Folded width (m)
3
Folded height (m)
3,8
Weight (Kg)
2.340
Power (hp)
260-280
P.V.P.
17.430 €

Optional

2 rows horizontal folding

For model	Cage roller Ø 400 mm with 10 25 mm bars				Cage roller Ø 460 mm with 9 corrugated bars of 60x8 mm				Cage roller Ø 480 mm with 8 bars Ø 35x4 mm
For model	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.
CHR-09-F	2011030091	2,70	228	1.210 €	2011030282	2,70	228	1.410 €	2011030324	2,70	291	1.400 €
CHR-11-F	2011030092	3,05	290	1.340 €	2011030283	3,05	290	1.570 €	2011030325	3,05	330	1.530 €
CHR-13 F	2011030093	3,05	290	1.340 €	2011030284	3,05	290	1.570 €	2011030326	3,05	330	1.530 €
CHR-13-PH	2011030094	3,80	452	2.670 €	2011030285	3,80	452	2.990 €	2011030327	3,80	545	3.070 €
CHR-15-PH (9)	2011030095	4,35	525	2.920 €	2011030286	4,35	525	3.250 €	2011030328	4,35	624	3.350 €
CHR-15-PH (11)	2011030096	4,35	533	2.920 €	2011030287	4,35	533	3.250 €	2011030329	4,35	638	3.350 €
CHR-17-PH (11)	2011030097	4,90	599	3.040 €	2011030288	4,90	599	3.440 €	2011030330	4,90	721	3.500 €
CHR-19-PH (11)	2011030098	5,40	672	3.280 €	2011030289	5,40	672	3.690 €	2011030331	5,40	800	3.770 €
CHR-21-PH (11)	2011030099	6,00	695	3.530 €	2011030290	6,00	695	4.000 €	2011030332	6,00	870	4.060 €

CHR-09-F

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030091
Width (m)
2,70
Kg
228
P.V.P.
1.210 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030282
Width (m)
2,70
Kg
228
P.V.P.
1.410 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030324
Width (m)
2,70
Kg
291
P.V.P.
1.400 €

CHR-11-F

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030092
Width (m)
3,05
Kg
290
P.V.P.
1.340 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030283
Width (m)
3,05
Kg
290
P.V.P.
1.570 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030325
Width (m)
3,05
Kg
330
P.V.P.
1.530 €

CHR-13 F

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030093
Width (m)
3,05
Kg
290
P.V.P.
1.340 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030284
Width (m)
3,05
Kg
290
P.V.P.
1.570 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030326
Width (m)
3,05
Kg
330
P.V.P.
1.530 €

CHR-13-PH

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030094
Width (m)
3,80
Kg
452
P.V.P.
2.670 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030285
Width (m)
3,80
Kg
452
P.V.P.
2.990 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030327
Width (m)
3,80
Kg
545
P.V.P.
3.070 €

CHR-15-PH (9)

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030095
Width (m)
4,35
Kg
525
P.V.P.
2.920 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030286
Width (m)
4,35
Kg
525
P.V.P.
3.250 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030328
Width (m)
4,35
Kg
624
P.V.P.
3.350 €

CHR-15-PH (11)

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030096
Width (m)
4,35
Kg
533
P.V.P.
2.920 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030287
Width (m)
4,35
Kg
533
P.V.P.
3.250 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030329
Width (m)
4,35
Kg
638
P.V.P.
3.350 €

CHR-17-PH (11)

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030097
Width (m)
4,90
Kg
599
P.V.P.
3.040 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030288
Width (m)
4,90
Kg
599
P.V.P.
3.440 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030330
Width (m)
4,90
Kg
721
P.V.P.
3.500 €

CHR-19-PH (11)

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030098
Width (m)
5,40
Kg
672
P.V.P.
3.280 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030289
Width (m)
5,40
Kg
672
P.V.P.
3.690 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030331
Width (m)
5,40
Kg
800
P.V.P.
3.770 €

CHR-21-PH (11)

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030099
Width (m)
6,00
Kg
695
P.V.P.
3.530 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030290
Width (m)
6,00
Kg
695
P.V.P.
4.000 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030332
Width (m)
6,00
Kg
870
P.V.P.
4.060 €

2 rows vertical folding

For model:	Cage roller Ø 400 mm with 10 25 mm bars			Cage roller Ø 460 mm with 9 corrugated bars of 60x8 mm			Cage roller Ø 480 mm with 8 bars Ø 35x4 mm
	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.
CVR-23-PH (11)	2011030105	6,5	710	3.620 €	2011030291	6,5	710	4.110 €	2011030333	6,5	950	4.160 €
CVR-25-PH (11)	2011030106	7,1	765	3.670 €	2011030292	7,1	765	4.220 €	2011030334	7,1	1050	4.220 €
CVR-27-PH (11)	2011030107	7,6	780	3.740 €	2011030293	7,6	780	4.340 €	2011030335	7,6	1120	4.300 €

CVR-23-PH (11)

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030105
Width (m)
6,5
Kg
710
P.V.P.
3.620 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030291
Width (m)
6,5
Kg
710
P.V.P.
4.110 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030333
Width (m)
6,5
Kg
950
P.V.P.
4.160 €

CVR-25-PH (11)

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030106
Width (m)
7,1
Kg
765
P.V.P.
3.670 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030292
Width (m)
7,1
Kg
765
P.V.P.
4.220 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030334
Width (m)
7,1
Kg
1050
P.V.P.
4.220 €

CVR-27-PH (11)

Cage Roller Ø 400 mm - 10 bars of 25 mm

Code
2011030107
Width (m)
7,6
Kg
780
P.V.P.
3.740 €

Cage Roller Ø 460 mm - 9 corrugated bars 60x8 mm

Code
2011030293
Width (m)
7,6
Kg
780
P.V.P.
4.340 €

Cage roller Ø 480 mm - 8 bars Ø 35x4 mm

Code
2011030335
Width (m)
7,6
Kg
1120
P.V.P.
4.300 €

2 rows horizontal folding

For model:	Cage roller Ø 550 mm with 10 60x8 mm corrugated bars			Packer roller Ø 500 mm			Cage roller Ø 550 mm with 9 x 25 mm square bars
	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.
CHR-09-F	2011030219	2,6	291	1.670 €	2011030194	2,6	320	3.070 €	2011030116	2,70	291	1.440 €
CHR-11-F	2011030220	3,05	330	1.800 €	2011030195	3,05	415	3.560 €	2011030117	3,05	330	1.510 €
CHR-13 F	2011030221	3,05	330	1.800 €	2011030196	3,05	415	3.560 €	2011030118	3,05	330	1.510 €
CHR-13-PH	2011030222	3,8	545	3.660 €	2011030197	3,8	465	5.060 €	2011030119	3,80	545	3.260 €
CHR-15-PH (9)	2011030224	4,35	624	3.760 €	2011030199	4,35	520	5.630 €	2011030120	4,35	624	3.680 €
CHR-15-PH (11)	2011030223	4,35	638	3.760 €	2011030198	4,35	520	5.630 €	2011030121	4,35	638	3.680 €
CHR-17-PH (11)	2011030225	4,9	721	4.290 €	2011030200	4,9	575	6.210 €	2011030122	4,90	721	3.790 €
CHR-19-PH (11)	2011030226	5,4	800	4.680 €	2011030201	5,4	620	6.780 €	2011030123	5,40	800	4.130 €
CHR-21-PH (11)	2011030227	6	870	5.070 €	2011030202	6	690	7.340 €	2011030124	6,00	870	4.450 €

CHR-09-F

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030219
Width (m)
2,6
Kg
291
P.V.P.
1.670 €

Packer roller Ø 500 mm

Code
2011030194
Width (m)
2,6
Kg
320
P.V.P.
3.070 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030116
Width (m)
2,70
Kg
291
P.V.P.
1.440 €

CHR-11-F

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030220
Width (m)
3,05
Kg
330
P.V.P.
1.800 €

Packer roller Ø 500 mm

Code
2011030195
Width (m)
3,05
Kg
415
P.V.P.
3.560 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030117
Width (m)
3,05
Kg
330
P.V.P.
1.510 €

CHR-13 F

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030221
Width (m)
3,05
Kg
330
P.V.P.
1.800 €

Packer roller Ø 500 mm

Code
2011030196
Width (m)
3,05
Kg
415
P.V.P.
3.560 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030118
Width (m)
3,05
Kg
330
P.V.P.
1.510 €

CHR-13-PH

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030222
Width (m)
3,8
Kg
545
P.V.P.
3.660 €

Packer roller Ø 500 mm

Code
2011030197
Width (m)
3,8
Kg
465
P.V.P.
5.060 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030119
Width (m)
3,80
Kg
545
P.V.P.
3.260 €

CHR-15-PH (9)

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030224
Width (m)
4,35
Kg
624
P.V.P.
3.760 €

Packer roller Ø 500 mm

Code
2011030199
Width (m)
4,35
Kg
520
P.V.P.
5.630 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030120
Width (m)
4,35
Kg
624
P.V.P.
3.680 €

CHR-15-PH (11)

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030223
Width (m)
4,35
Kg
638
P.V.P.
3.760 €

Packer roller Ø 500 mm

Code
2011030198
Width (m)
4,35
Kg
520
P.V.P.
5.630 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030121
Width (m)
4,35
Kg
638
P.V.P.
3.680 €

CHR-17-PH (11)

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030225
Width (m)
4,9
Kg
721
P.V.P.
4.290 €

Packer roller Ø 500 mm

Code
2011030200
Width (m)
4,9
Kg
575
P.V.P.
6.210 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030122
Width (m)
4,90
Kg
721
P.V.P.
3.790 €

CHR-19-PH (11)

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030226
Width (m)
5,4
Kg
800
P.V.P.
4.680 €

Packer roller Ø 500 mm

Code
2011030201
Width (m)
5,4
Kg
620
P.V.P.
6.780 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030123
Width (m)
5,40
Kg
800
P.V.P.
4.130 €

CHR-21-PH (11)

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030227
Width (m)
6
Kg
870
P.V.P.
5.070 €

Packer roller Ø 500 mm

Code
2011030202
Width (m)
6
Kg
690
P.V.P.
7.340 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030124
Width (m)
6,00
Kg
870
P.V.P.
4.450 €

2 rows vertical folding

For model:	Cage roller Ø 550 mm with 10 60x8 mm corrugated bars			Packer roller Ø 500 mm			Cage roller Ø 550 mm with 9 x 25 mm square bars
	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.
CVR-23-PH (11)	2011030234	6,5	950	5.190 €	2011030209	6,5	730	7.860 €	2011030131	6,5	950	4.530 €
CVR-25-PH (11)	2011030235	7,1	1050	5.370 €	2011030210	7,1	785	8.500 €	2011030132	7,1	1050	4.680 €
CVR-27-PH (11)	2011030236	7,6	1120	5.470 €	2011030211	7,6	820	9.010 €	2011030133	7,6	1120	4.740 €

CVR-23-PH (11)

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030234
Width (m)
6,5
Kg
950
P.V.P.
5.190 €

Packer roller Ø 500 mm

Code
2011030209
Width (m)
6,5
Kg
730
P.V.P.
7.860 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030131
Width (m)
6,5
Kg
950
P.V.P.
4.530 €

CVR-25-PH (11)

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030235
Width (m)
7,1
Kg
1050
P.V.P.
5.370 €

Packer roller Ø 500 mm

Code
2011030210
Width (m)
7,1
Kg
785
P.V.P.
8.500 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030132
Width (m)
7,1
Kg
1050
P.V.P.
4.680 €

CVR-27-PH (11)

Cage roller Ø 550 mm - 10 corrugated bars of 60x8 mm

Code
2011030236
Width (m)
7,6
Kg
1120
P.V.P.
5.470 €

Packer roller Ø 500 mm

Code
2011030211
Width (m)
7,6
Kg
820
P.V.P.
9.010 €

Cage roller Ø 550 mm - 9 x 25 mm square bars

Code
2011030133
Width (m)
7,6
Kg
1120
P.V.P.
4.740 €

2 rows horizontal folding

For model:	Double spring rake Ø 10 mm - 2 rows			Spring rake Ø 16 mm - 1 row			Rake 2 rows of interchangeable blades
	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.
CHR-09-F	2011030015	2,6	125	740 €	2011030016	2,6	125	1.230 €	2011030065	2,6	180	1.010 €
CHR-11-F	2011030017	3,05	147	830 €	2011030018	3,05	147	1.460 €	2011030066	3,05	211	1.170 €
CHR-11-P	2011030019	3,05	155	940 €	2011030020	3,05	155	1.550 €	2011030067	3,05	223	1.280 €
CHR-13 F	2011030021	3,05	183	830 €	2011030022	3,05	183	1.460 €	2011030068	3,05	263	1.170 €
CHR-13-PH	2011030023	3,8	203	1.670 €	2011030024	3,8	203	2.090 €	2011030069	3,8	292	2.120 €
CHR-15-PH (9)	2011030025	4,35	208	1.750 €	2011030027	4,35	208	2.310 €	2011030071	4,35	300	2.210 €
CHR-15-PH (11)	2011030028	4,35	208	1.750 €	2011030026	4,35	208	2.310 €	2011030070	4,35	300	2.210 €
CHR-17-PH (11)	2011030032	4,9	216	1.830 €	2011030031	4,9	216	2.550 €	2011030072	4,9	311	2.300 €
CHR-19-PH (11)	2011030034	5,4	222	1.900 €	2011030033	5,4	222	2.730 €	2011030073	5,4	320	2.370 €
CHR-21-PH (11)	2011030036	6	256	1.980 €	2011030035	6	256	2.930 €	2011030074	6	368	2.470 €

CHR-09-F

Double spring rake Ø 10 mm - 2 rows

Code
2011030015
Width (m)
2,6
Kg
125
P.V.P.
740 €

Spring rake Ø 16 mm - 1 row

Code
2011030016
Width (m)
2,6
Kg
125
P.V.P.
1.230 €

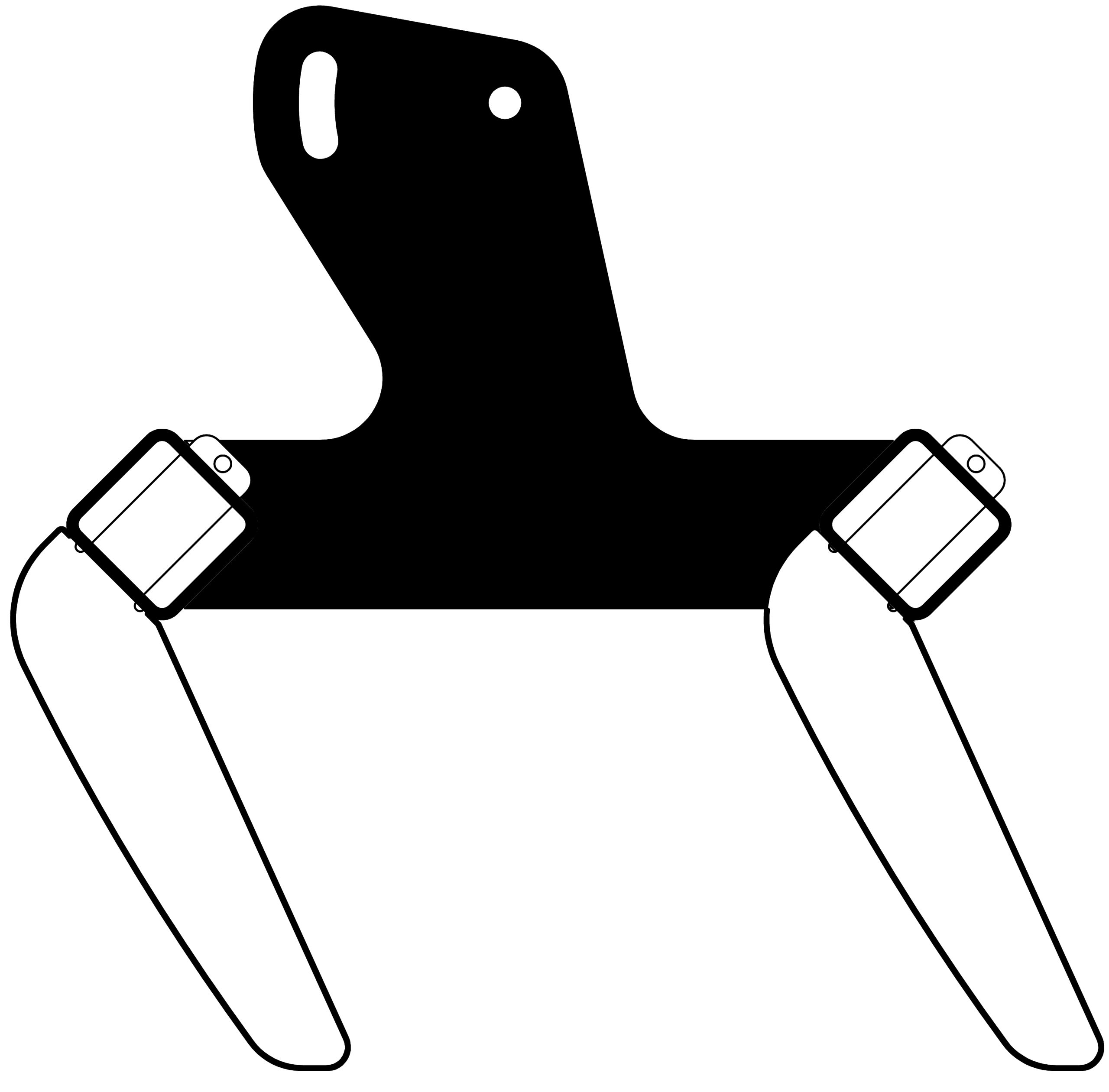

Rake 2 rows of interchangeable blades

Code
2011030065
Width (m)
2,6
Kg
180
P.V.P.
1.010 €

CHR-11-F

Double spring rake Ø 10 mm - 2 rows

Code
2011030017
Width (m)
3,05
Kg
147
P.V.P.
830 €

Spring rake Ø 16 mm - 1 row

Code
2011030018
Width (m)
3,05
Kg
147
P.V.P.
1.460 €

Rake 2 rows of interchangeable blades

Code
2011030066
Width (m)
3,05
Kg
211
P.V.P.
1.170 €

CHR-11-P

Double spring rake Ø 10 mm - 2 rows

Code
2011030019
Width (m)
3,05
Kg
155
P.V.P.
940 €

Spring rake Ø 16 mm - 1 row

Code
2011030020
Width (m)
3,05
Kg
155
P.V.P.
1.550 €

Rake 2 rows of interchangeable blades

Code
2011030067
Width (m)
3,05
Kg
223
P.V.P.
1.280 €

CHR-13 F

Double spring rake Ø 10 mm - 2 rows

Code
2011030021
Width (m)
3,05
Kg
183
P.V.P.
830 €

Spring rake Ø 16 mm - 1 row

Code
2011030022
Width (m)
3,05
Kg
183
P.V.P.
1.460 €

Rake 2 rows of interchangeable blades

Code
2011030068
Width (m)
3,05
Kg
263
P.V.P.
1.170 €

CHR-13-PH

Double spring rake Ø 10 mm - 2 rows

Code
2011030023
Width (m)
3,8
Kg
203
P.V.P.
1.670 €

Spring rake Ø 16 mm - 1 row

Code
2011030024
Width (m)
3,8
Kg
203
P.V.P.
2.090 €

Rake 2 rows of interchangeable blades

Code
2011030069
Width (m)
3,8
Kg
292
P.V.P.
2.120 €

CHR-15-PH (9)

Double spring rake Ø 10 mm - 2 rows

Code
2011030025
Width (m)
4,35
Kg
208
P.V.P.
1.750 €

Spring rake Ø 16 mm - 1 row

Code
2011030027
Width (m)
4,35
Kg
208
P.V.P.
2.310 €

Rake 2 rows of interchangeable blades

Code
2011030071
Width (m)
4,35
Kg
300
P.V.P.
2.210 €

CHR-15-PH (11)

Double spring rake Ø 10 mm - 2 rows

Code
2011030028
Width (m)
4,35
Kg
208
P.V.P.
1.750 €

Spring rake Ø 16 mm - 1 row

Code
2011030026
Width (m)
4,35
Kg
208
P.V.P.
2.310 €

Rake 2 rows of interchangeable blades

Code
2011030070
Width (m)
4,35
Kg
300
P.V.P.
2.210 €

CHR-17-PH (11)

Double spring rake Ø 10 mm - 2 rows

Code
2011030032
Width (m)
4,9
Kg
216
P.V.P.
1.830 €

Spring rake Ø 16 mm - 1 row

Code
2011030031
Width (m)
4,9
Kg
216
P.V.P.
2.550 €

Rake 2 rows of interchangeable blades

Code
2011030072
Width (m)
4,9
Kg
311
P.V.P.
2.300 €

CHR-19-PH (11)

Double spring rake Ø 10 mm - 2 rows

Code
2011030034
Width (m)
5,4
Kg
222
P.V.P.
1.900 €

Spring rake Ø 16 mm - 1 row

Code
2011030033
Width (m)
5,4
Kg
222
P.V.P.
2.730 €

Rake 2 rows of interchangeable blades

Code
2011030073
Width (m)
5,4
Kg
320
P.V.P.
2.370 €

CHR-21-PH (11)

Double spring rake Ø 10 mm - 2 rows

Code
2011030036
Width (m)
6
Kg
256
P.V.P.
1.980 €

Spring rake Ø 16 mm - 1 row

Code
2011030035
Width (m)
6
Kg
256
P.V.P.
2.930 €

Rake 2 rows of interchangeable blades

Code
2011030074
Width (m)
6
Kg
368
P.V.P.
2.470 €

2 rows vertical folding

For model:	Double spring rake Ø 10 mm - 2 rows			Spring rake Ø 16 mm - 1 row			Rake 2 rows of interchangeable blades
	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.	Code	Width (m)	Kg	P.V.P.
CVR-23-PH (11)	2011030053	6,5	280	2.020 €	2011030054	6,5	280	3.080 €	2011030081	6,5	403	2.530 €
CVR-25-PH (11)	2011030055	7,1	290	2.130 €	2011030056	7,1	290	3.330 €	2011030082	7,1	417	2.650 €
CVR-27-PH (11)	2011030057	7,6	300	2.210 €	2011030058	7,6	300	3.560 €	2011030083	7,6	432	2.760 €

CVR-23-PH (11)

Double spring rake Ø 10 mm - 2 rows

Code
2011030053
Width (m)
6,5
Kg
280
P.V.P.
2.020 €

Spring rake Ø 16 mm - 1 row

Code
2011030054
Width (m)
6,5
Kg
280
P.V.P.
3.080 €

Rake 2 rows of interchangeable blades

Code
2011030081
Width (m)
6,5
Kg
403
P.V.P.
2.530 €

CVR-25-PH (11)

Double spring rake Ø 10 mm - 2 rows

Code
2011030055
Width (m)
7,1
Kg
290
P.V.P.
2.130 €

Spring rake Ø 16 mm - 1 row

Code
2011030056
Width (m)
7,1
Kg
290
P.V.P.
3.330 €

Rake 2 rows of interchangeable blades

Code
2011030082
Width (m)
7,1
Kg
417
P.V.P.
2.650 €

CVR-27-PH (11)

Double spring rake Ø 10 mm - 2 rows

Code
2011030057
Width (m)
7,6
Kg
300
P.V.P.
2.210 €

Spring rake Ø 16 mm - 1 row

Code
2011030058
Width (m)
7,6
Kg
300
P.V.P.
3.560 €

Rake 2 rows of interchangeable blades

Code
2011030083
Width (m)
7,6
Kg
432
P.V.P.
2.760 €

Videos

SOIL MACHINERY - SOLANO HORIZONTE

CHR and CVR 2 rows superchisel

Superchisel 2 rows CHR and CVR (40x40 arm)
