Nut collector with front umbrella
Series 90
The almond harvester with front umbrella and drawer allows a great saving of time and labor through a fast and efficient harvesting of the fruits. It requires a tractor with a power of 70 or 80 HP, depending on the model, and it is installed in the front part of the tractor by placing the hydraulic power unit in the rear part of the tractor. Umbrella for harvesting almonds, pistachios or walnuts.
Features
- Simultaneous umbrella and clamp opening movement.
- Independent regulation of umbrella opening.
- Orbital vibration system.
- Vibrating dual mass clamp with soft square mallets and mass supplements 1-2 and 1-2-3 as standard.
- Rear hydraulic power unit with quick couplings and compensating weights
- RD90 with standard caliper twist.

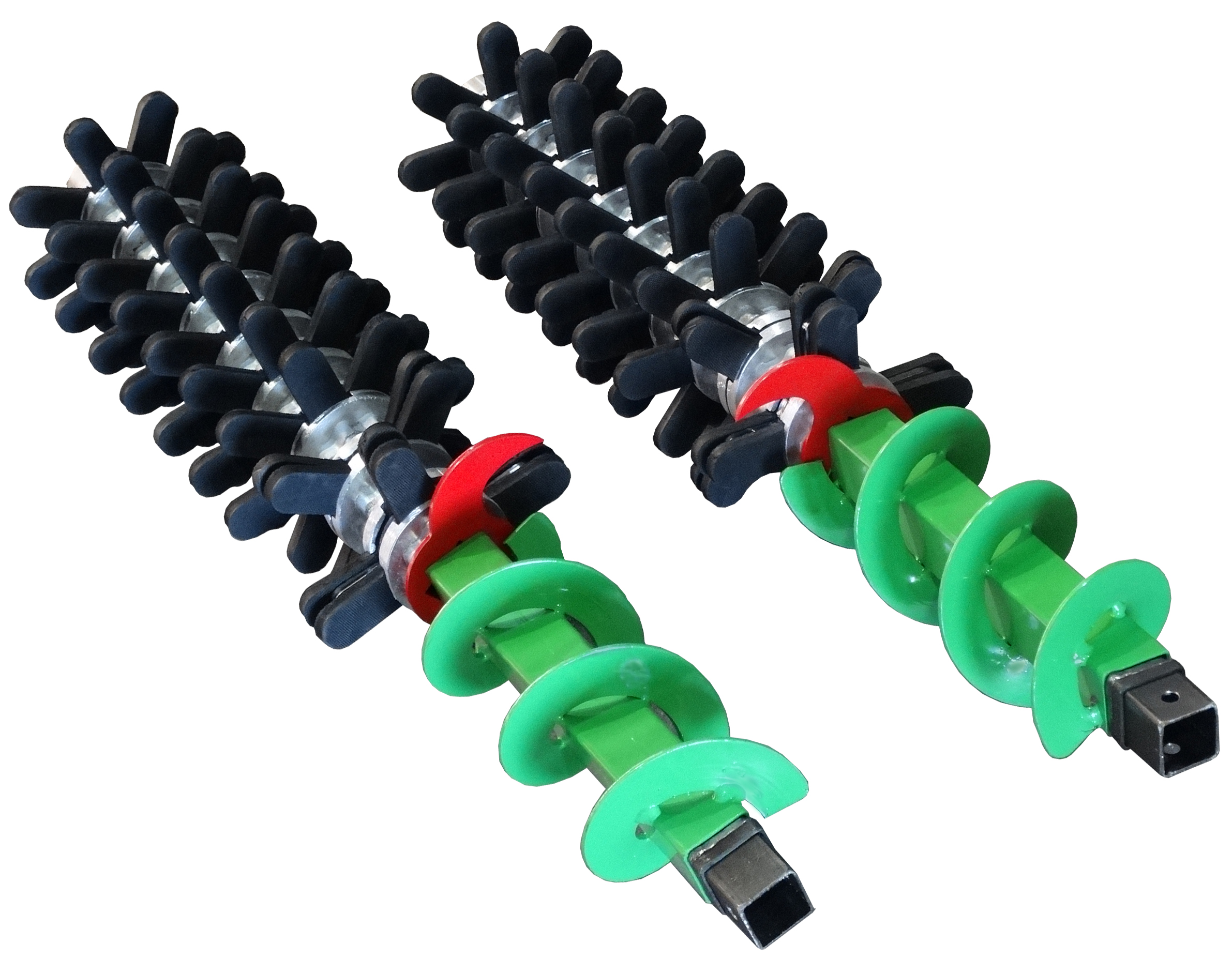

- Peelers with independent regulation and rotation inverter.
- Electronically controlled cabin control.
- TFT 540 r.p.m. cardan shaft transmission.
- Optimal working speed: 380 r.p.m.
| Code | Model | Gripper rotation 35°. | Gripper lift | Drawer (m) | Ø Umbrella (m) | Power (hp) | Min. planting frame (m)* | P.V.P. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Folding backrest | Peelers | A | B | |||||||
| 1041050004 | RD 75 | OP | ● | - | - | 6,5 | 70 | 5 | 6 | 28.150 € |
| 1041050006 | RD 75 P | OP | ● | - | 2 | 6,5 | 70 | 5 | 6 | 34.440 € |
| 1041060001 | RD 90 | ● | ● | ● | - | 7 | 80 | 6 | 7 | 30.270 € |
| 1041060002 | RD 90 P | ● | ● | ● | 2 | 7 | 80 | 6 | 7 | 37.010 € |

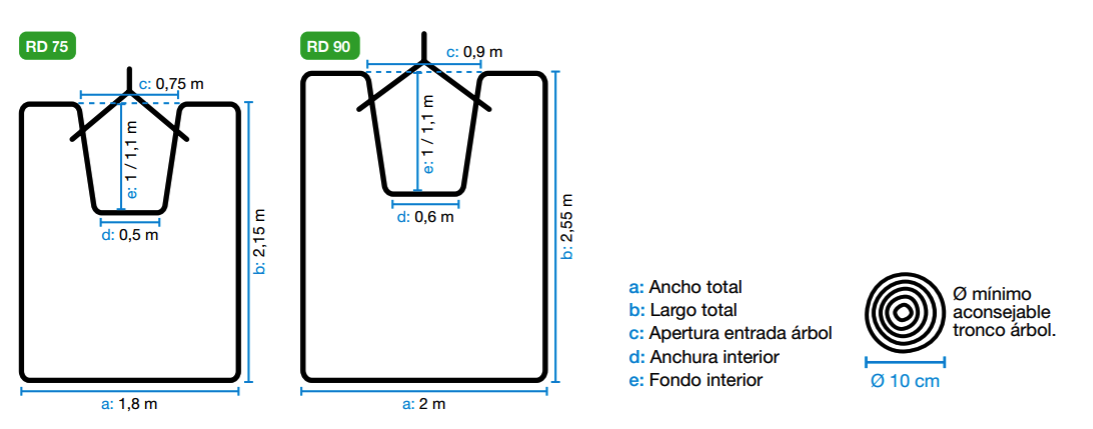

Measures

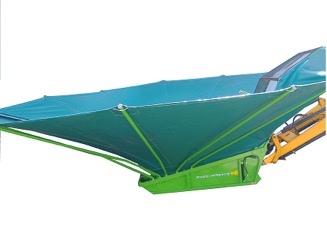

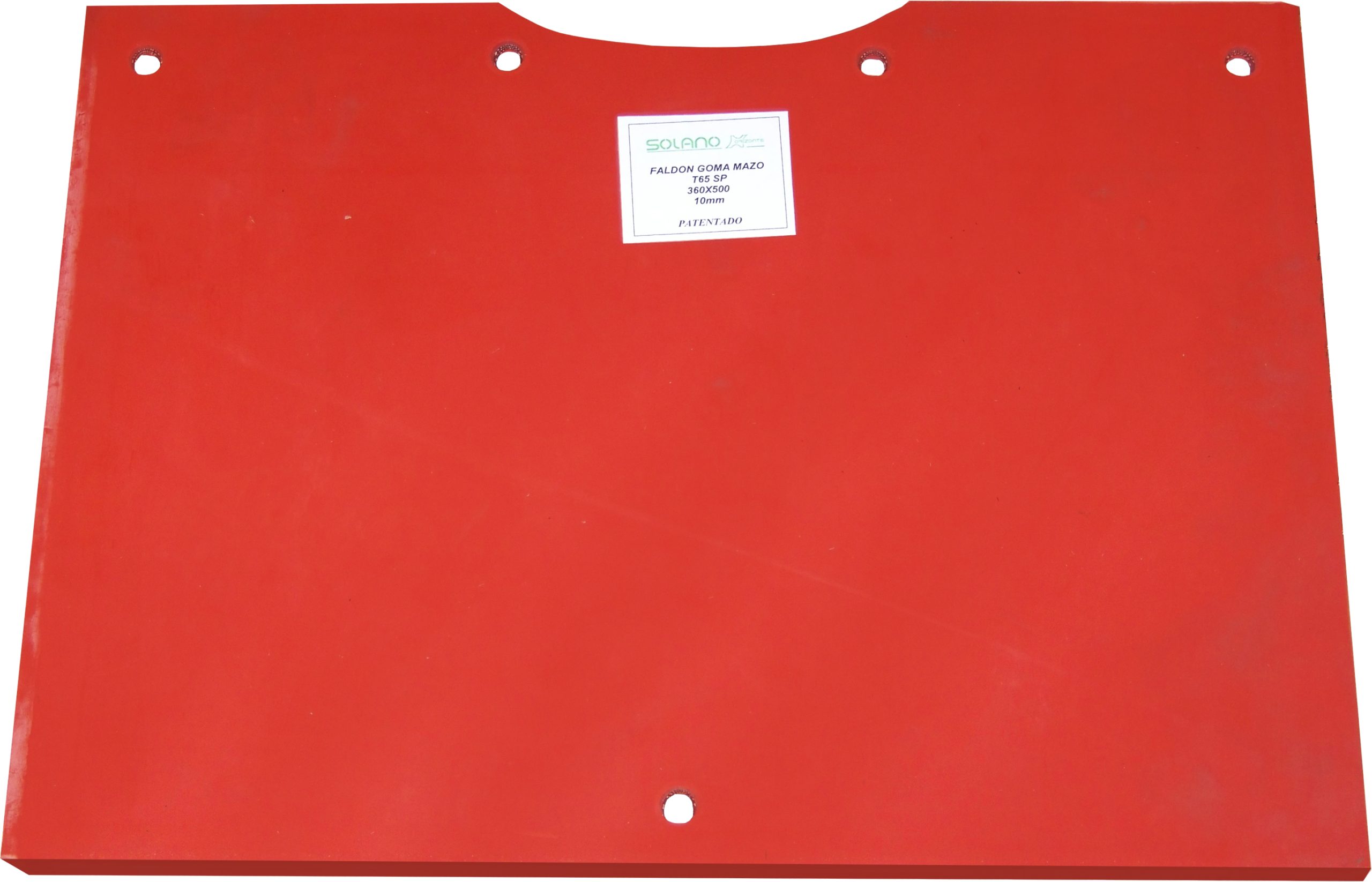

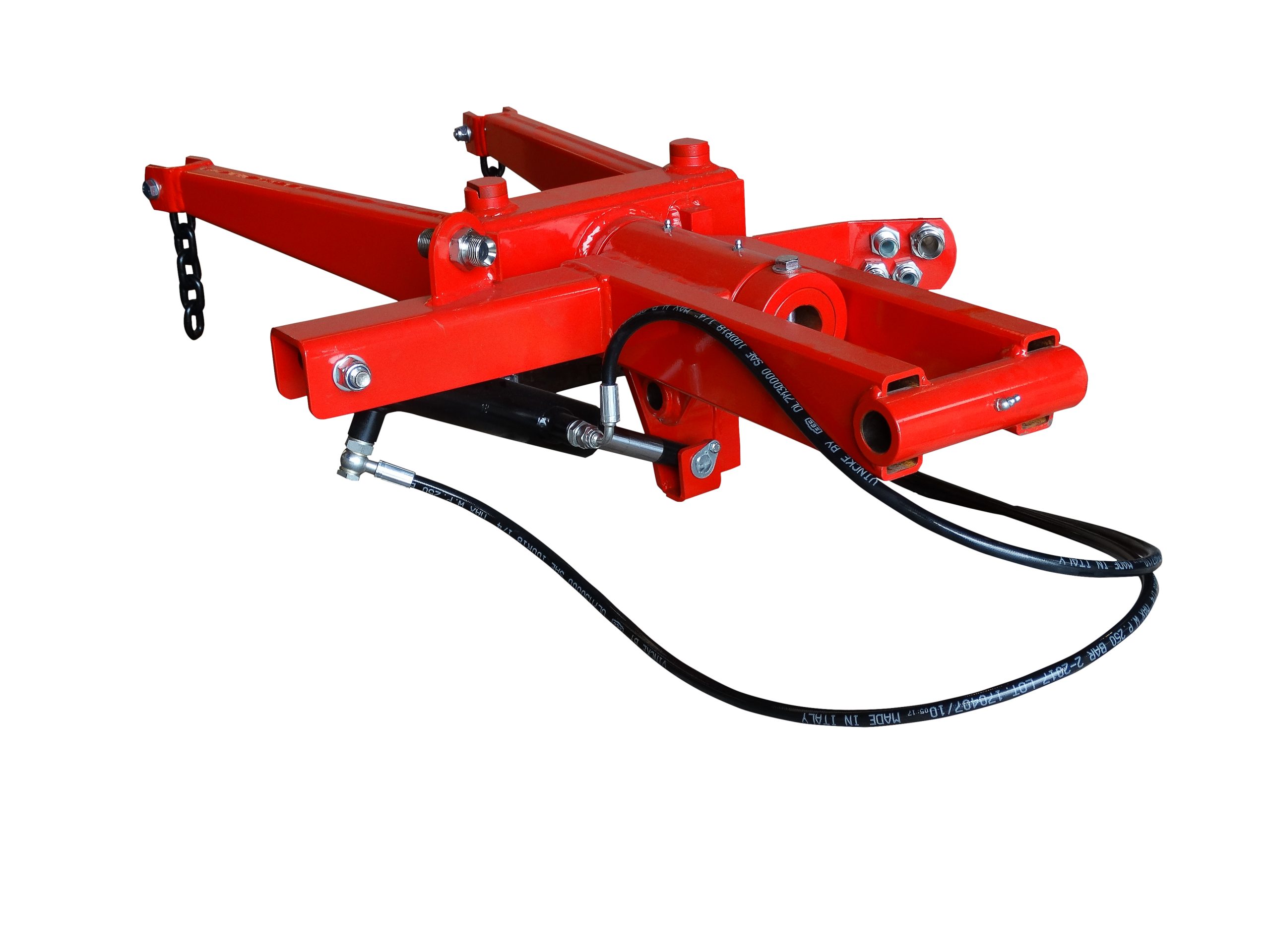

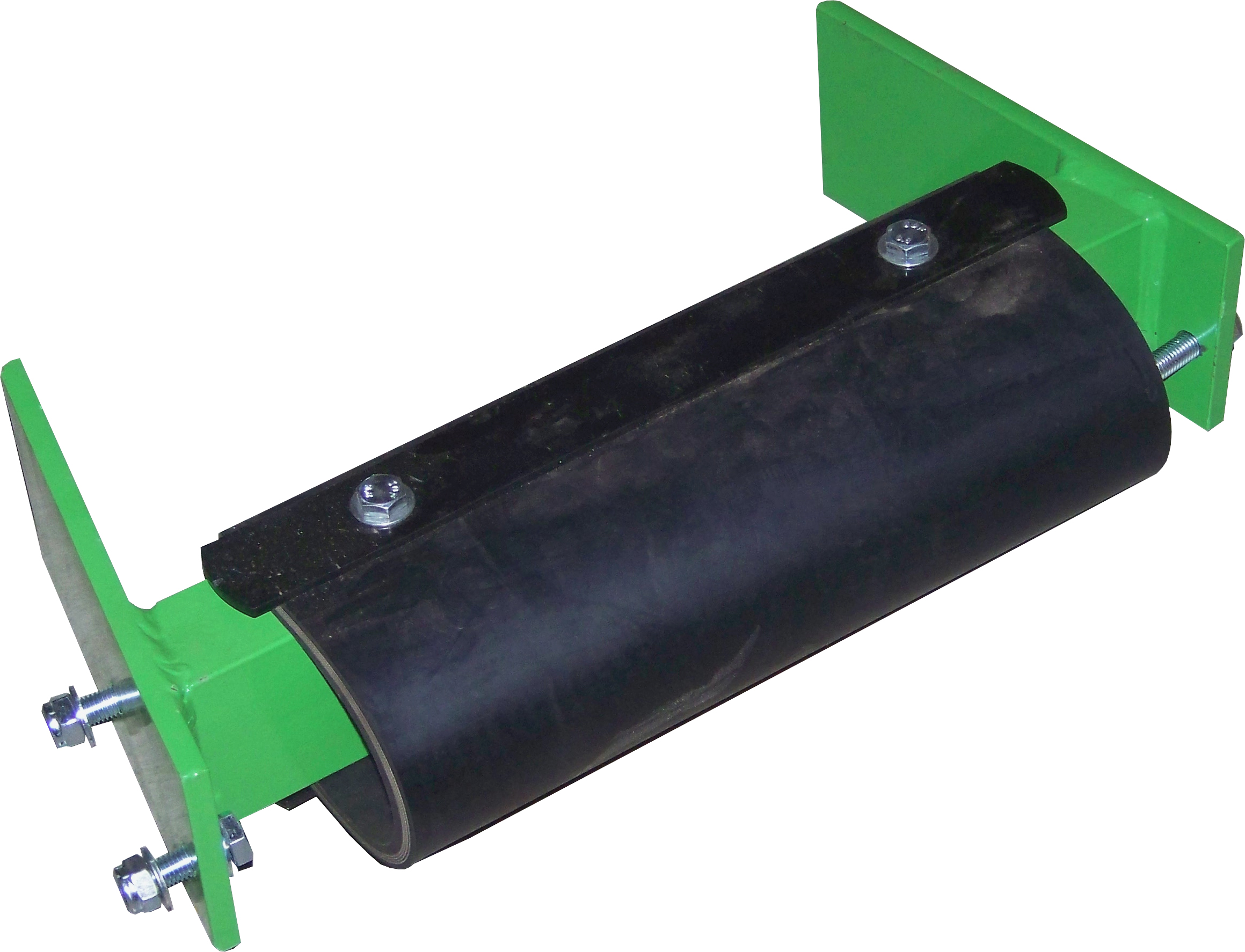

Optional
