Mixed harvesters
Mixed collector with front umbrella
100 Series for nuts and olives
The mixed harvester with front umbrella and drawer can be used for both almond and olive harvesting , allowing a great saving of time and labor through a fast and efficient harvesting of the fruits. It requires a tractor with a power between 70CV and 90CV, depending on the model and with front blades, placing the hydraulic power unit at the rear.
Features
- Simultaneous umbrella and clamp opening movement.
- Independent regulation of umbrella opening.
- PISTON hydraulic system composed of: ' Reversible orbital vibration block in both directions. Vibration brake. Self-tightening vibrating clamp.
- Standard peeler hole cover set.

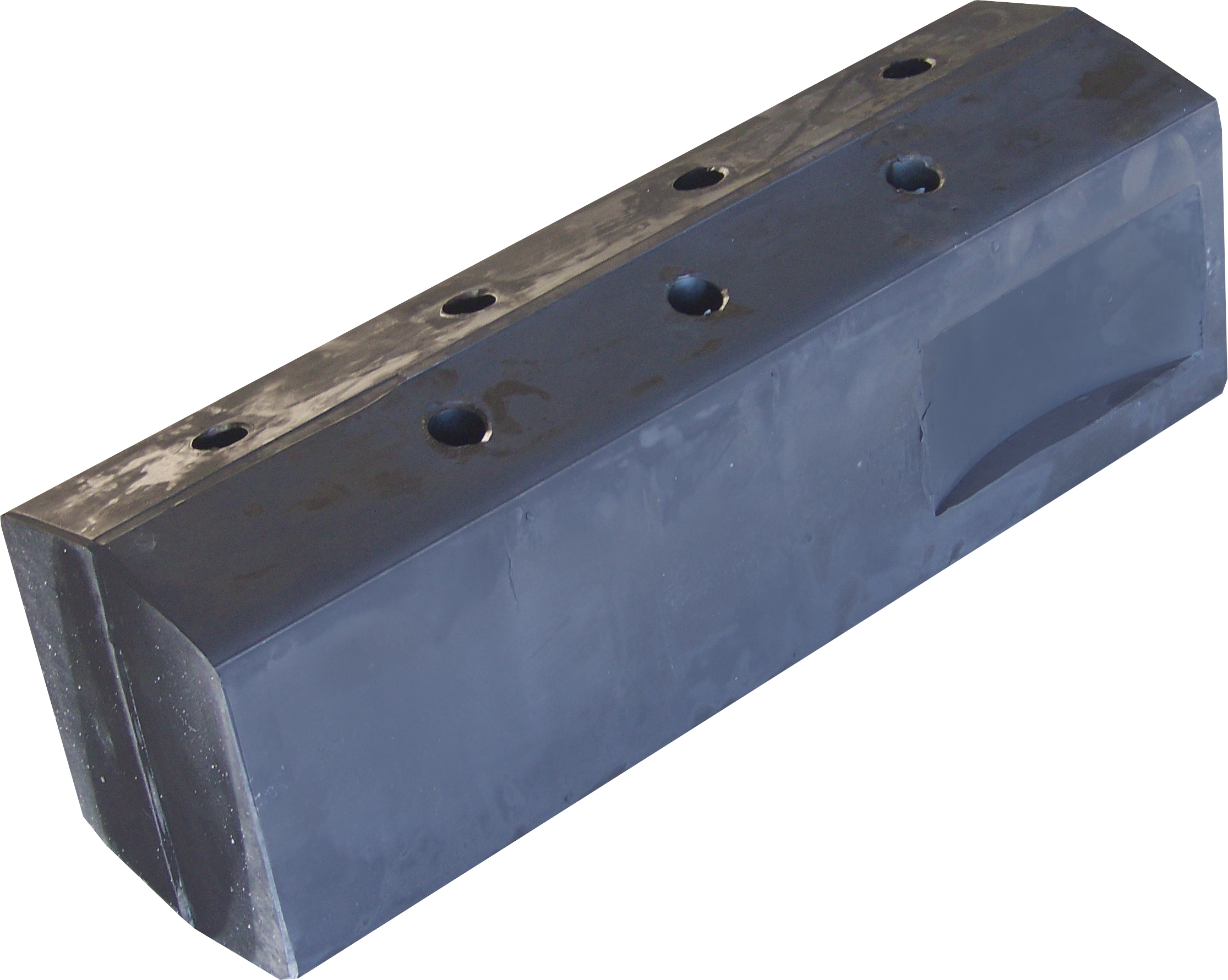

- Single-mass vibrating clamp with lift-and-turn and soft mallets.

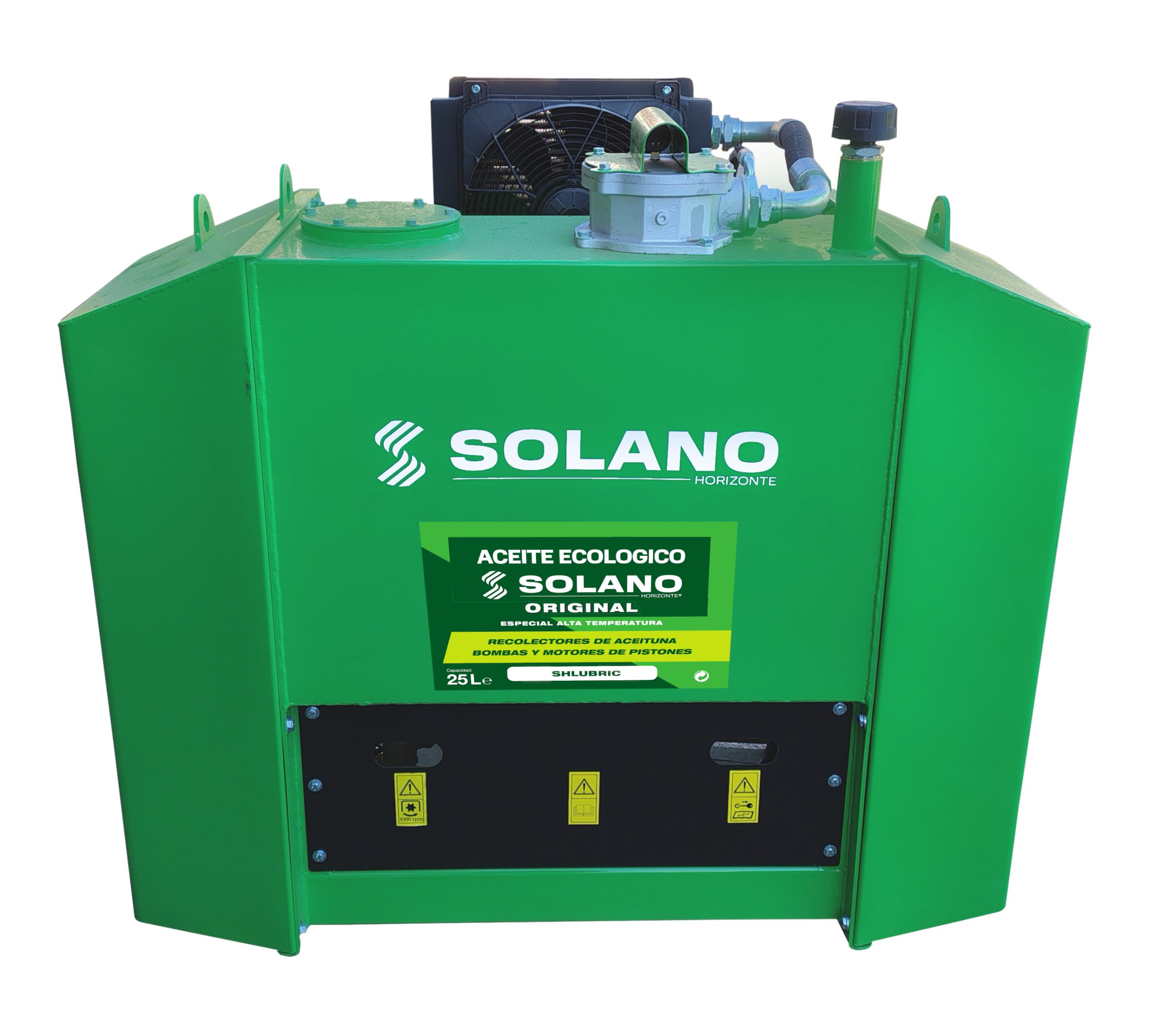

- Rear hydraulic power unit mounted on the rear 3 points of the tractor, quick couplings and counterweights. Visual oil level and temperature indicator, thermostat, cooler and return and suction filter.

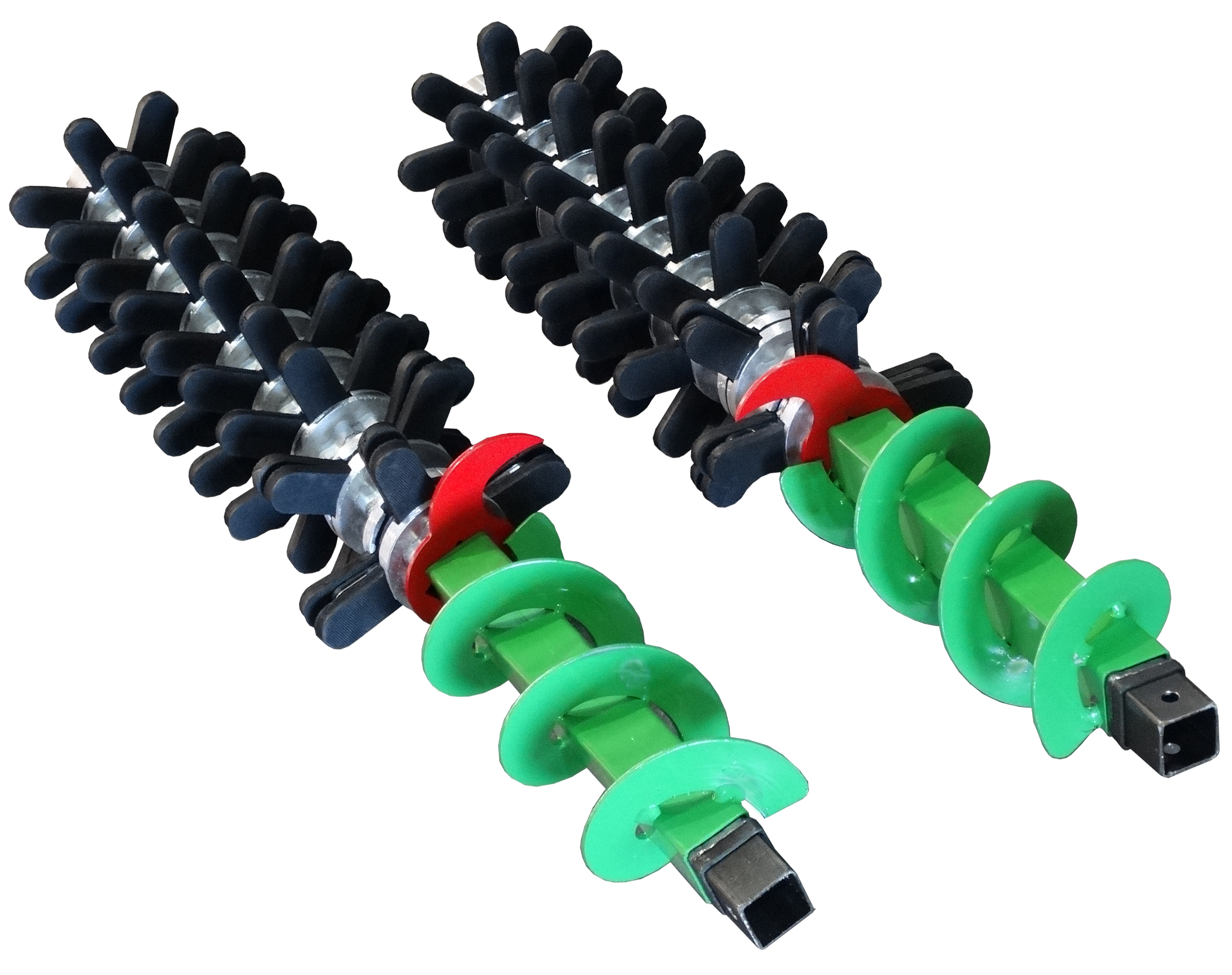

- Peelers with independent regulation and rotation inverter.
- Auger stop from control.
- Electronically controlled cabin control.
- Umbrella quick release (depending on model).
- Supplement 4 MIX mass.
- Supplement 5 MIX mass.
- TFT 1000 r.p.m. cardan shaft transmission.
- Optimal working speed: 880 r.p.m.
- Prepared for harvesting nuts.
| Code | Model | Quick drawer unlatching | Ext. Clamp 400 mm | Drawer (m) | Ø Umbrella (m) | Power (hp) | Minimum plantation frame (m)*. | P.V.P. | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Resp. | Abat. | Peelers | A | B | |||||||
| 1041030001 | R75 MIX | - | - | ● | - | 2 | 6,5 | 80 | 5 | 6 | 39.150 € |
| 1041030003 | R90 MIX | - | - | ● | - | 2 | 7 | 90 | 6 | 7 | 43.780 € |
| 1041030005 | R90 MIX EXT | - | ● | ● | - | 2 | 7 | 90 | 6 | 7 | 45.660 € |
| 1041030004 | R90 MIX ENG RAP | ● | - | ● | - | 2 | 7 | 90 | 6 | 7 | 45.980 € |
| 1041030006 | R90 MIX EXT ENG RAP | ● | ● | ● | - | 2 | 7 | 90 | 6 | 7 | 47.850 € |

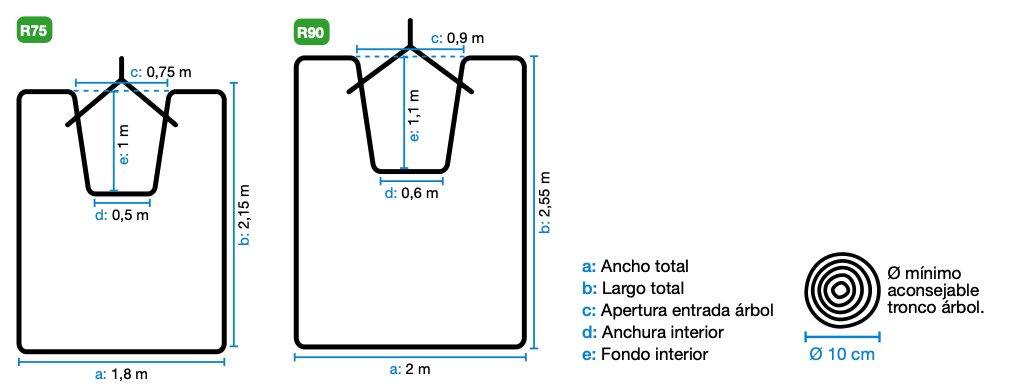

Measures

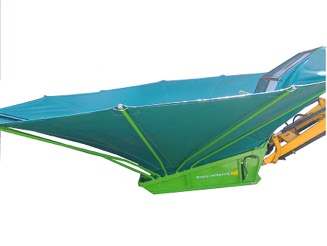

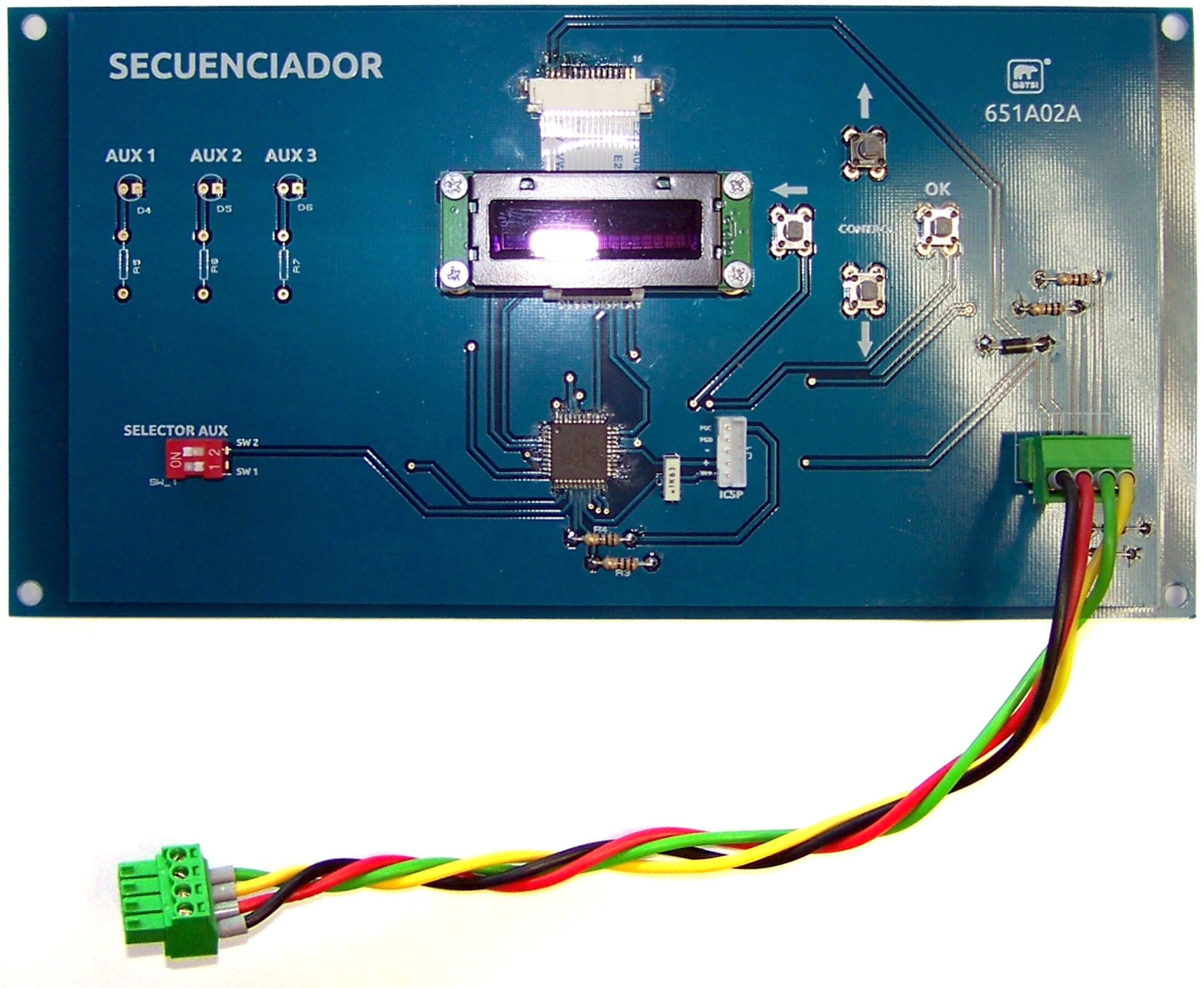

Optional
